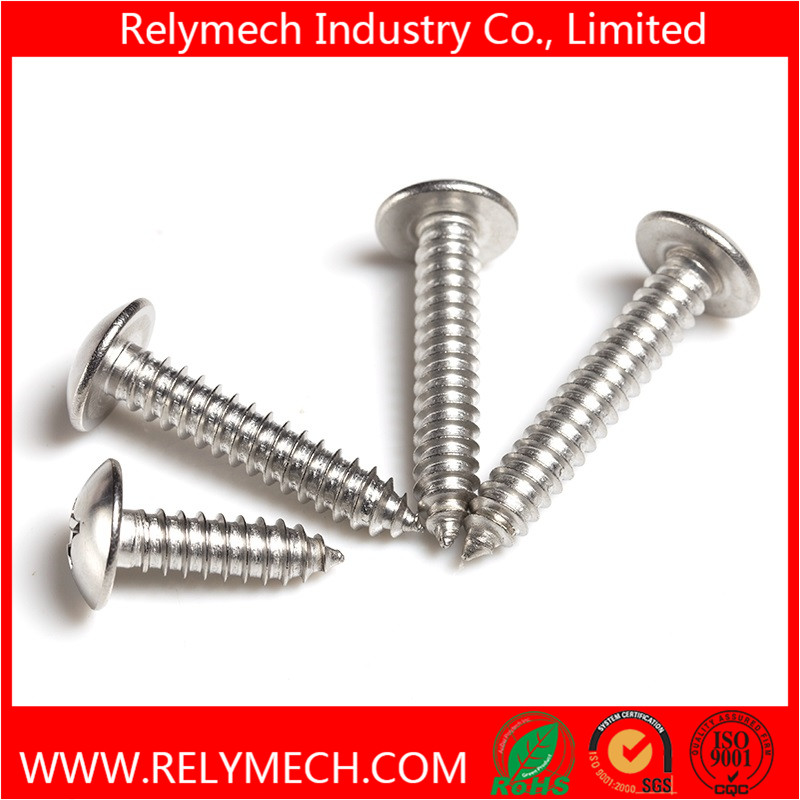

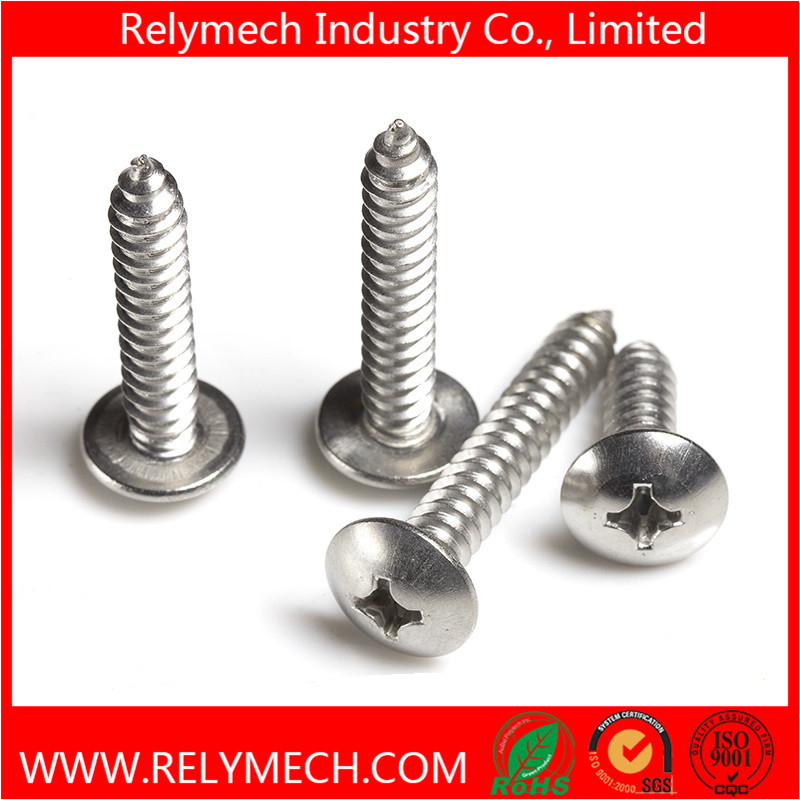

Phillips Truss Head Self-Tapping Screw in Stainless Steel 304

  • Model NO.: M2.9-M6.3
  • Type: Mushroom Head
  • Connection: Common Bolt
  • Standard: DIN, GB
  • Trademark: OEM
  • Specification: M2.9-M6.3
  • HS Code: 73181500
  • Material: Stainless Steel
  • Groove: Cross
  • Head Style: Round
  • Grade: 4.8
  • Transport Package: Plastic Bag, Carton, Pallet
  • Origin: Jiangsu, China
Quantity:
 Phillips Truss head machine screw in stainless steel 304

Product name: Phillips Truss head machine screw/ cross recessed screw/ mushroom head screw
Standard: JIS, DIN,ANSI
Material: SUS304
Head type: Truss head/ mushroom head
Drive type: Phillips/ cross recessed
Diameter size:M3 to M6
Length: 4mm to 70mm
Application: machinery

Phillips Truss Head Self-Tapping Screw in Stainless Steel 304

                                                                                     Unit:mm
Model P dk k
min max min max
M3 0.5 6.4 7 1.6 2.05
M4 0.7 8.9 9.5 2.35 2.65
M5 0.8 11.2 11.8 2.95 3.25
M6 1 13.3 14 3.5 3.9
The above parameters for your reference.
Please inform the the model and length when you send the inquiry, like M3*4, thank you!

Phillips Truss Head Self-Tapping Screw in Stainless Steel 304 Phillips Truss Head Self-Tapping Screw in Stainless Steel 304 Phillips Truss Head Self-Tapping Screw in Stainless Steel 304

We supply the products:
Fastener---screw, bolt, nut, washer, rivet, pin, key;
Pneumatic components---fittings, cylinders;
Transmission part---ball screw, linear guide way, ball spline, linear motor module, ball transfer unit etc.

Why Choose us?
Over 10 years export experience;
Less MOQ;
Competitive Price;
Quick response;
Short Delivery time;
Good service
Provide systematic solution for equipment components.


Relymech Industry Co., Limited, a rapid-developing industrial product distributer located in China, is focusing on equipment components systematic solution for manufacturer & maintenance business in mechanism transmission parts, fasteners and pneumatic components etc.

Our team has more than 10 years' experience in design, process and sales in this industry. We commit to make continuously improving & innovation to meet customer's requirements and work closely with our partners to provide qualified parts with competitive price and best service to each customer!
