Product Description

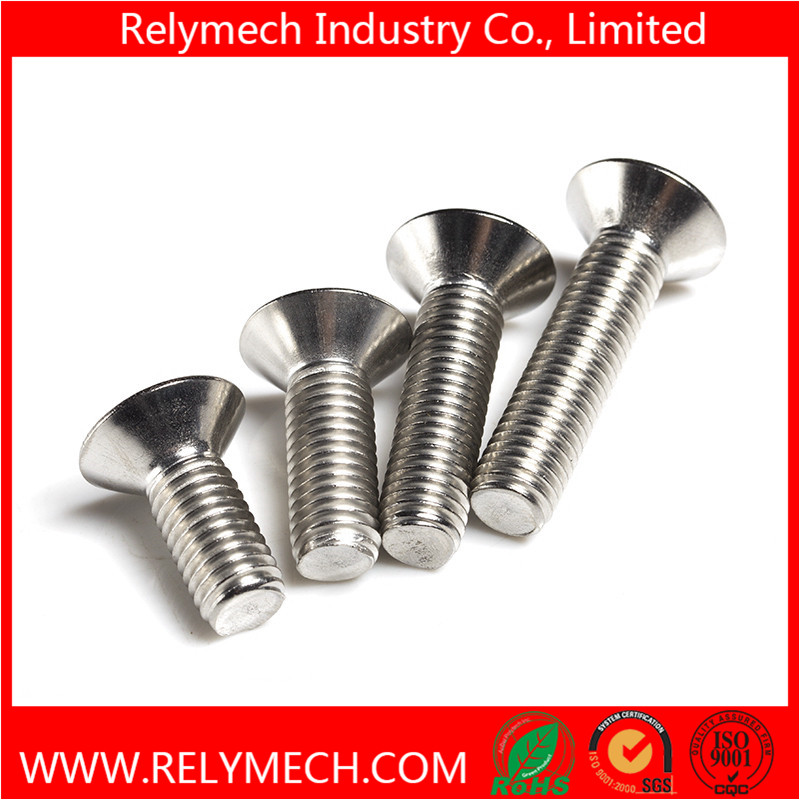

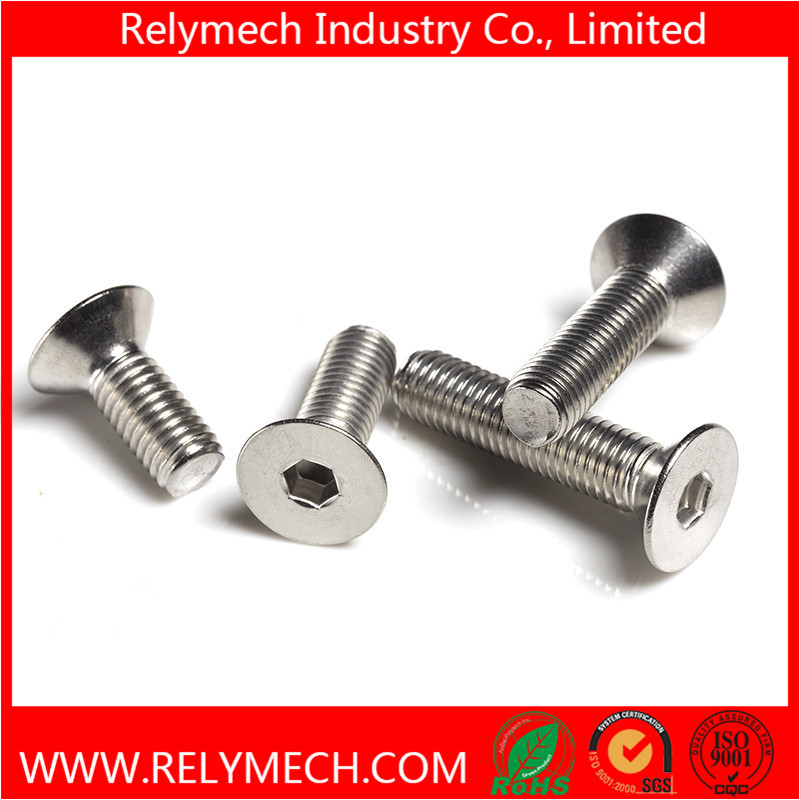

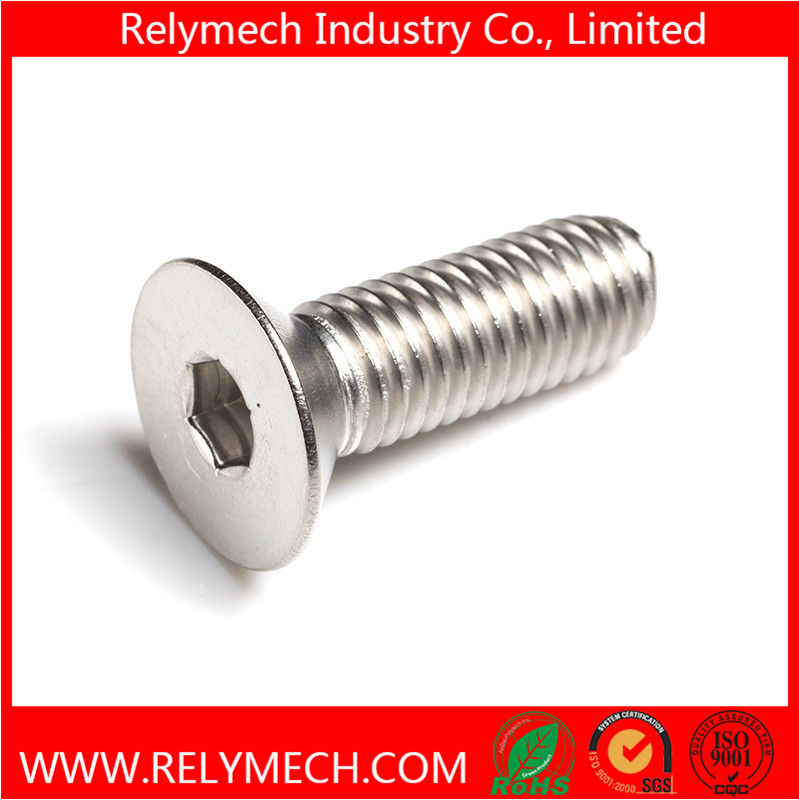

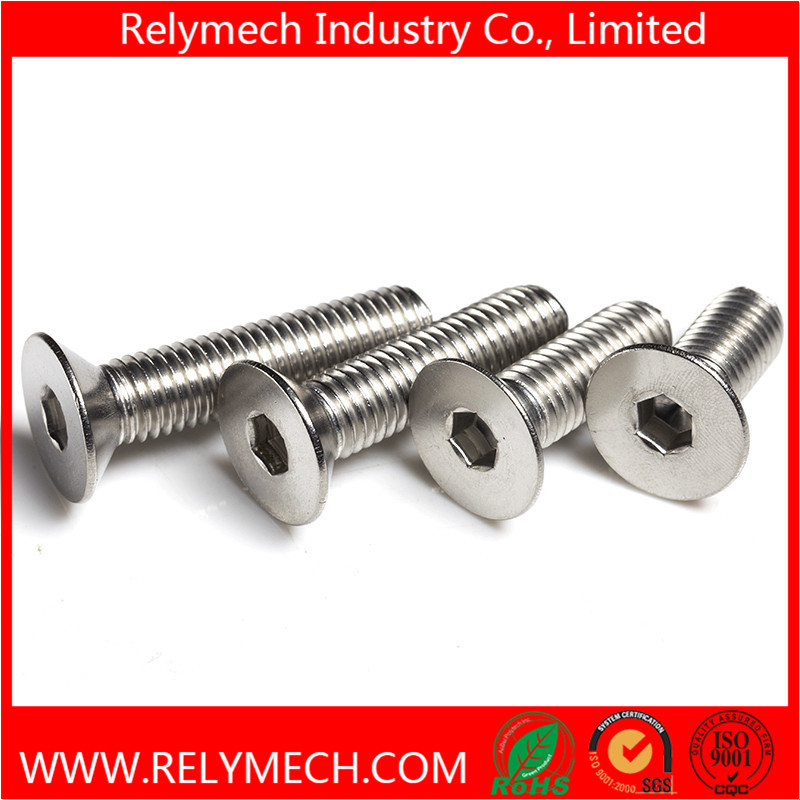

Stainless steel Countersunk hex socket bolt M2-M20

Product name: Countersunk hex socket bolt/ machine screw
Standard: DIN7991
Material: SUS304
Head type: countersunk head
Diameter size:M2-M20
Length: 3mm to 100mm

d	P	dk max		ds max	e min	k max	s	t min
d	P	Max	min	ds max	e min	k max	s	t min
M2	0.4	3.85	3.73	-	-	1.4	1.3	-
M2.5	0.45	5.3	4.9	-	-	1.68	1.5	-
M3	0.5	6.72	5.54	3	2.3	1.86	2	1.1
M4	0.7	8.96	7.53	4	2.87	2.48	2.5	1.5
M5	0.8	11.2	9.43	5	3.44	3.1	3	1.9
M6	1	13.44	11.34	6	4.58	3.72	4	2.2
M8	1.25	17.92	15.24	8	5.72	4.96	5	3
M10	1.5	22.4	19.22	10	6.86	6.2	6	3.6
M12	1.75	26.88	23.12	12	9.15	7.44	8	4.3
M14	2	30.8	26.52	14	11.43	8.4	10	4.5
M16	2	33.6	29.01	16	11.43	8.8	10	4.8
M20	2.5	40.32	36.05	20	13.72	10.16	12	5.6

The above parameters for your reference.

Please inform the the model and length when you send the inquiry, like M6*20, thank you!
