Product Description

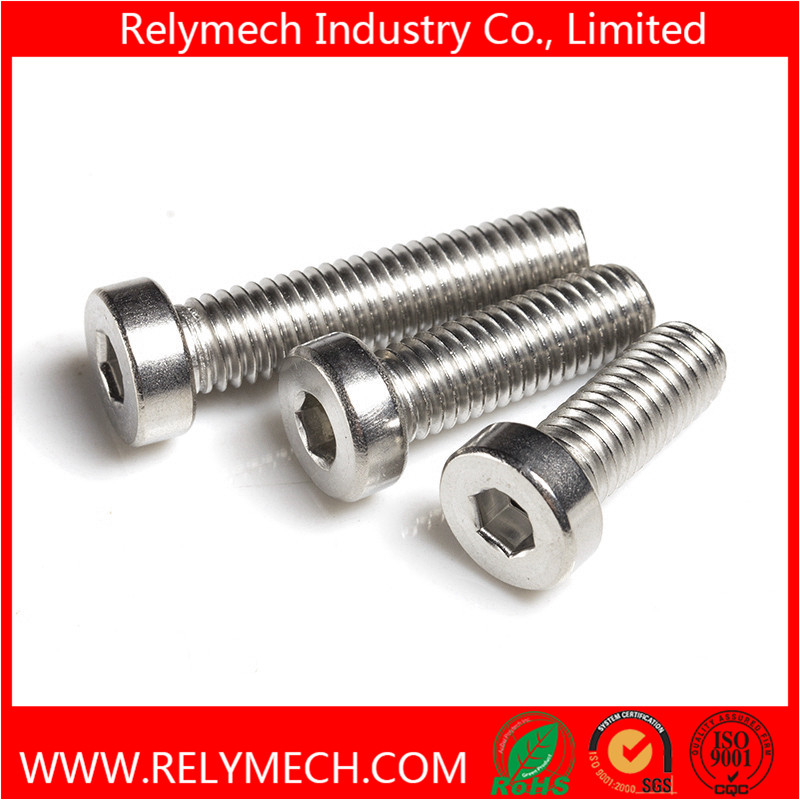

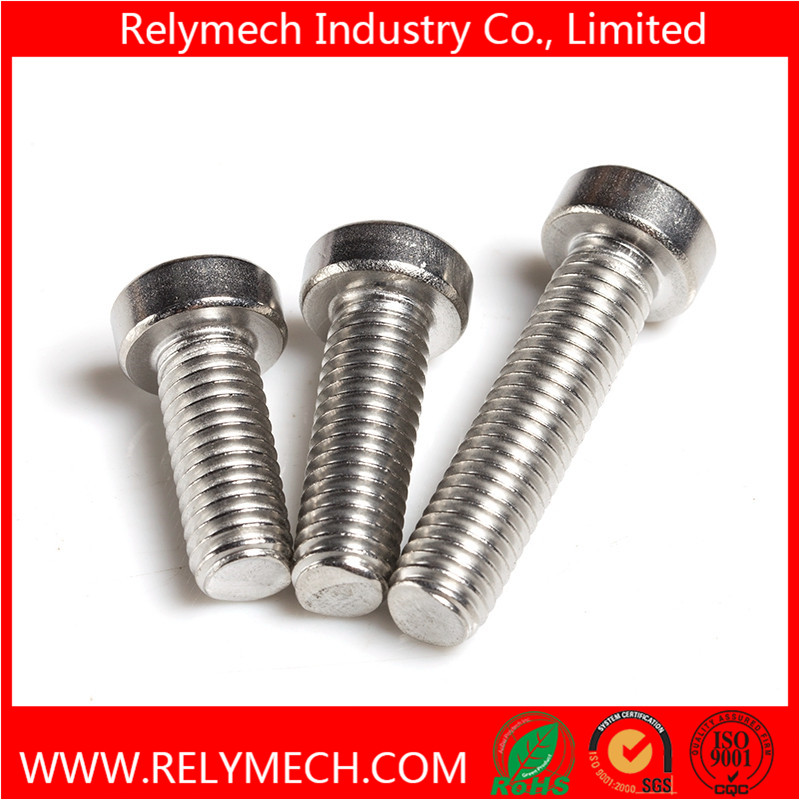

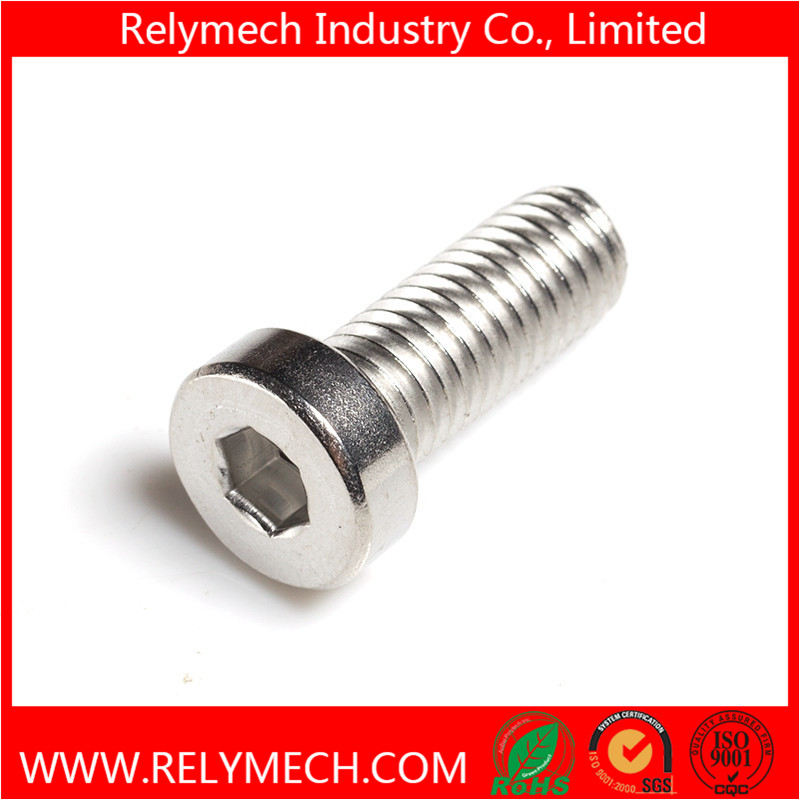

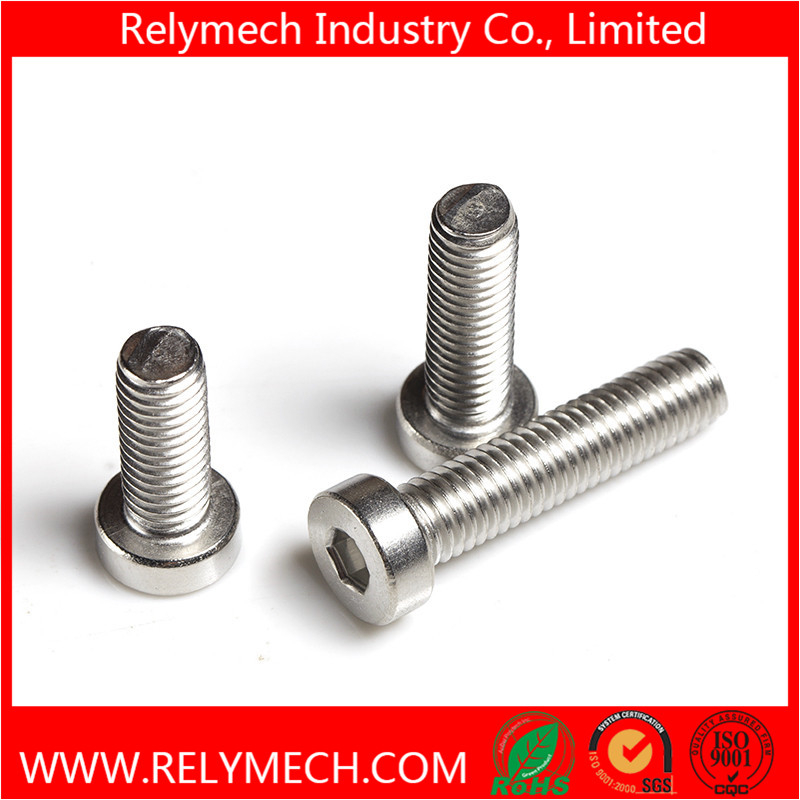

Stainless steel Hex socket thin head cup head bolt machine screw M3-M10

Product name: Hex socket thin head cup head bolt machine screw
Standard: DIN7984
Material: SUS304
Head type: hex socket thin head cup head
Diameter size:M3-M10
Length: 3mm to 55mm

d	M3	M4	M5	M6	M8
p	0.5	0.7	0.8	1	1.25
dk	5.32-5.55	6.78-7	8.28-8.5	9.78-10	12.73-13
k	1.86-2	2.66-2.8	3.32-3.5	3.82-4	4.82-5
s	2.02-2.1	2.52-2.6	3.02-3.1	4.02-4.12	5.02-5.14
t	1.38-1.62	2.18-2.42	2.58-2.82	2.88-3.12	3.65-3.95

The above parameters for your reference.

Please inform the the model and length when you send the inquiry, like M6*20, thank you!

We supply the products:
Fastener---screw, bolt, nut, washer, rivet, pin, key;
Pneumatic components---fittings, cylinders;
Transmission part---ball screw, linear guide way, ball spline, linear motor module, ball transfer unit etc.

Why Choose us?
Over 10 years export experience;
Less MOQ;
Competitive Price;
Quick response;
Short Delivery time;
Good service
Provide systematic solution for equipment components.
