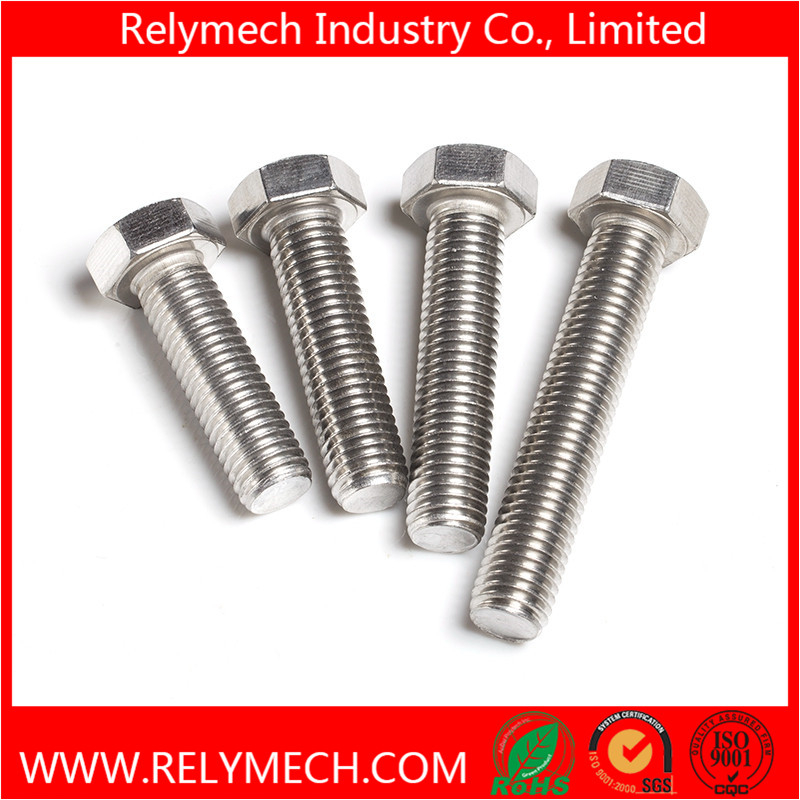

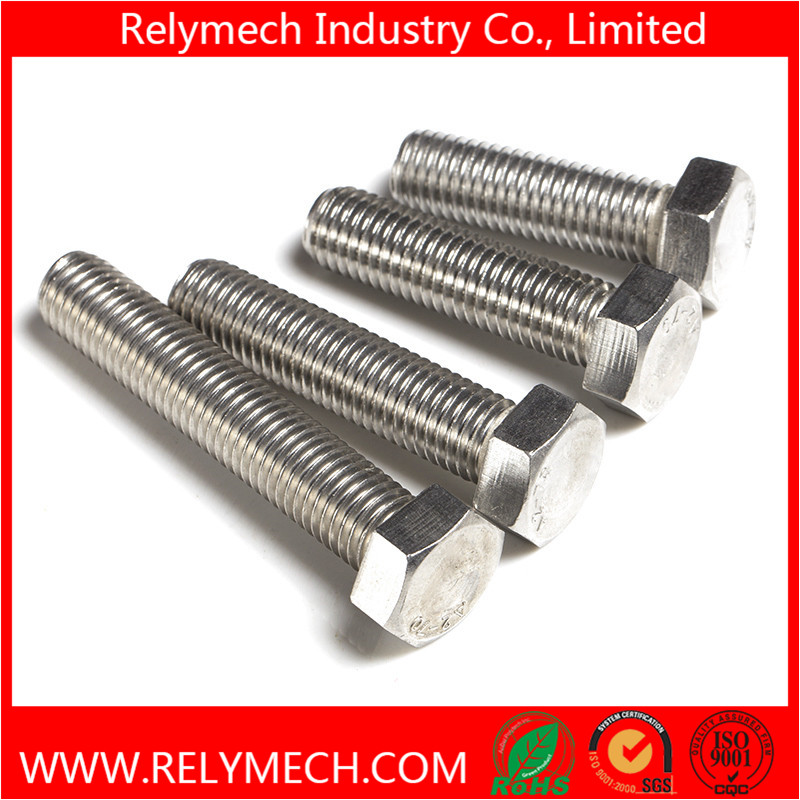

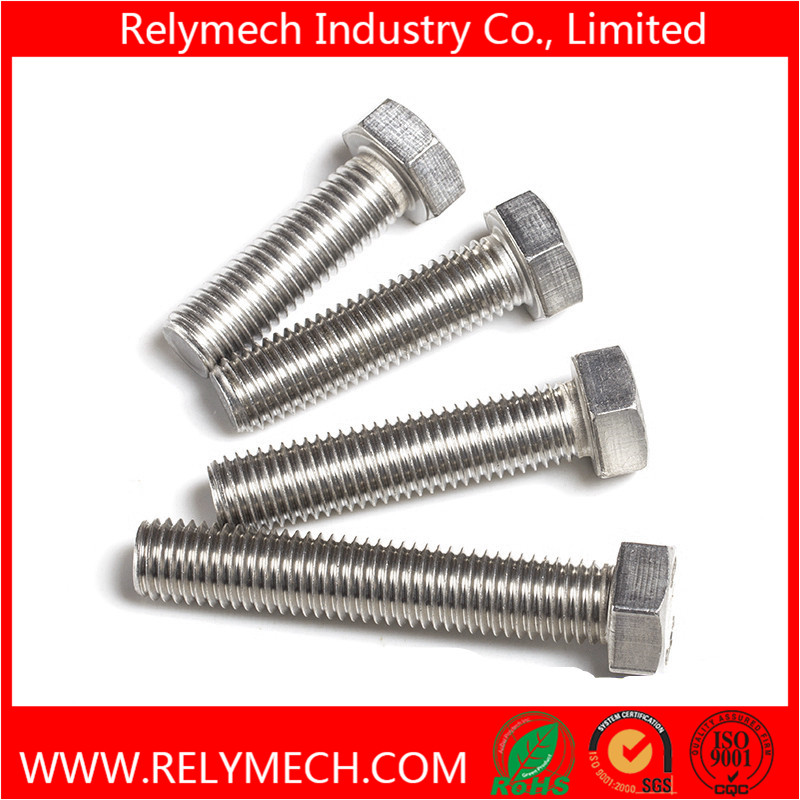

DIN933 Stainless Steel Hex Head Bolt Machine Screw M5-M33

  • Model NO.: M5-M33
  • Type: Hexagon Head
  • Head Style: Hexagonal
  • Application: Building
  • Trademark: OEM
  • Specification: M5-M33
  • HS Code: 731815
  • Material: Stainless Steel
  • Connection: Common Bolt
  • Standard: DIN, GB
  • Finish: Passivation
  • Transport Package: Plastic Bag, Carton, Pallet
  • Origin: Jiangsu, China
Quantity:
DIN933 Stainless steel Hex head bolt machine screw M5-M33

Product name: Hex bolt/ Hex head bolt
Standard:DIN933
Material: SUS304
Head type: Hex head
Diameter size:M5-M33
Length: 8mm to 200mm

DIN933 Stainless Steel Hex Head Bolt Machine Screw M5-M33
d P a e  min k s
max min a b
M5 0.8 2.4 0.8 8.79 8.63 3.5 8
M6 1 3 1 11.05 10.89 4 10
M8 1.25 4 1.25 14.38 14.2 5.3 13
M10 1.5 4.5 1.5 17.77 17.59 6.4 16
M14 1.75 5.3 1.75 20.03 19.85 7.5 18
M16 2 6 2 23.36 22.78 8.8 21
M18 2 6 2 26.75 26.17 10 24
M20 2.5 7.5 2.5 30.14 29.56 11.5 27
M22 2.5 7.5 2.5 33.53 32.95 12.5 30
M24 2.5 7.5 2.5 37.72 37.29 14 34
M27 3 9 3 39.98 39.55 15 36
M30 3 9 3   45.2 17 41
M33 3.5 10.5 3.5   50.85 18.7 46
  3.5 10.5 3.5   55.37 21 50
The above parameters for your reference.
Please inform the the model and length when you send the inquiry, like M6*60,  thank you!
