Product Description

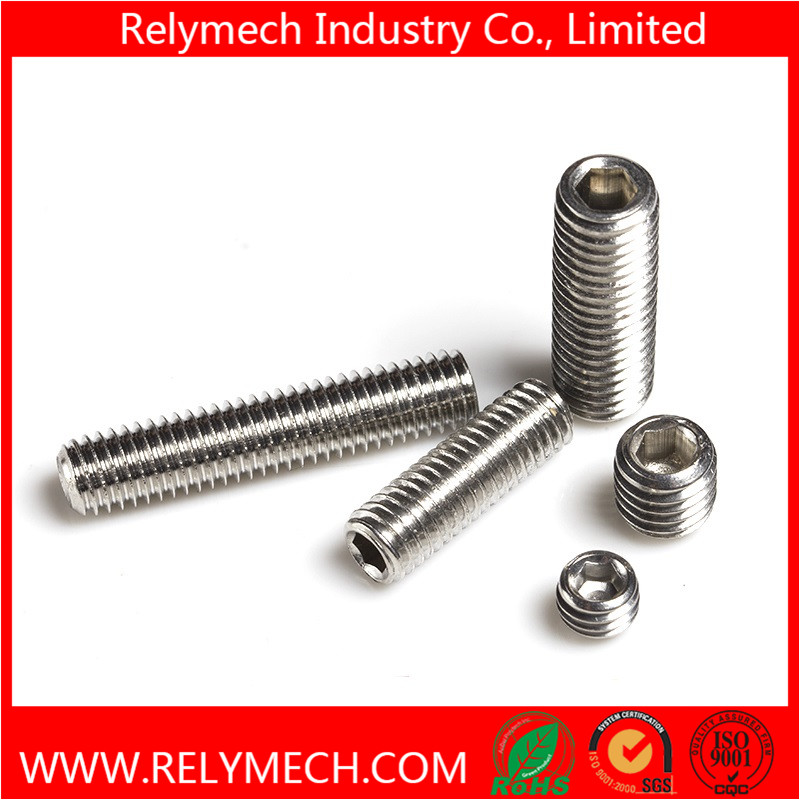

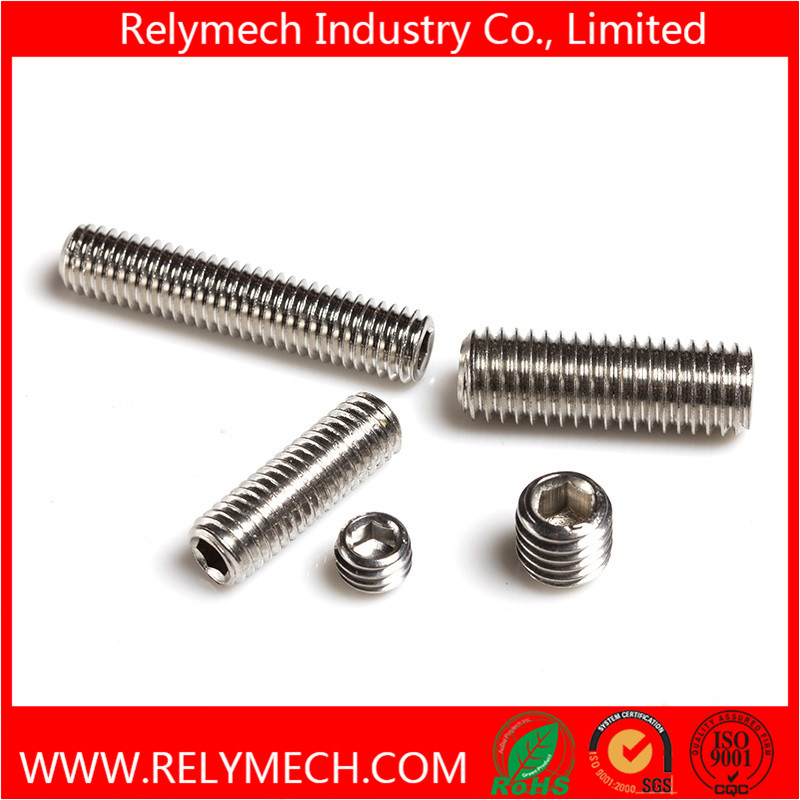

Hex socket head set screw with cup point in stainless steel 304

Product name: Hex socket head set screw with cup point
Standard: DIN,GB
Material: SUS304
Head type: Hex socket head
Diameter size:M3-M10
Length: 3mm to 30mm
Application: machinery

Unit:mm
Model	p	dz max	e[c] min	s[D]	t min
Model	p	dz max	e[c] min	s[D]	E	F
M3	0.5	1.4	1.73	1.5	1.2	2
M4	0.7	2	2.3	2	1.5	2.5
M5	0.8	2.5	2.87	2.5	2	3
M6	1	3	3.44	3	2	3.5
M8	1.25	5	4.58	4	3	5
M10	1.5	6	5.72	5	4	6

The above parameters for your reference.

Please inform the the model and length when you send the inquiry, like M3*4, thank you!
