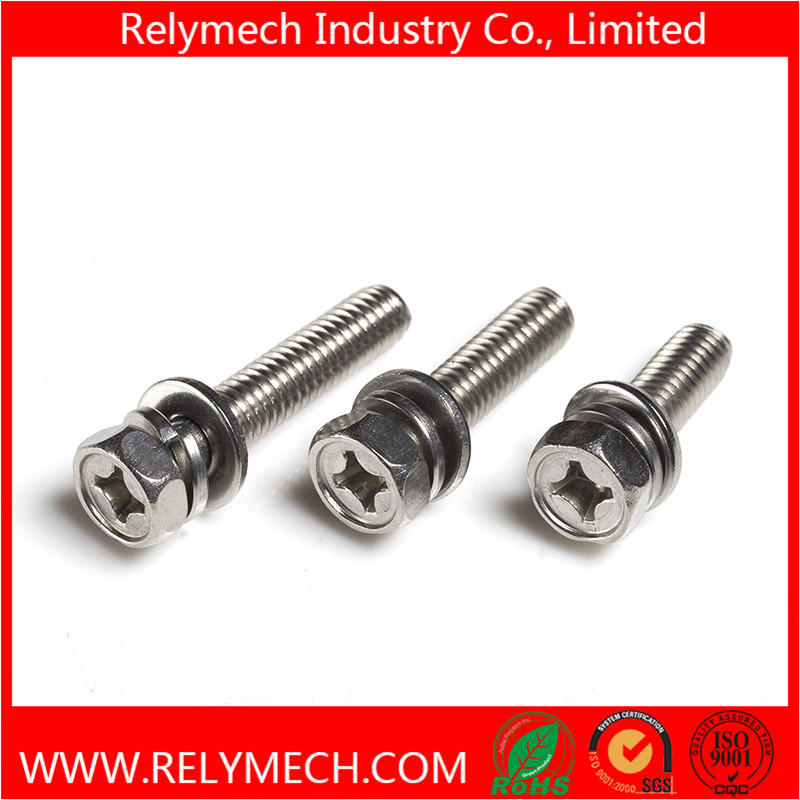

Phillips hex head combination screw/ sem screw with washer in SUS304
Product name: Phillips Hex head combination screw/ sem screw/ machine screw/ cross recessed screw/ screw nut washer
Head type: Phillips hex head
Length: 8mm to 50mm
| Unit:mm |
|Model ||M4 ||M5 ||M6 |
|d ||3.85-3.97 ||4.85-4.97 ||5.85-5.97 |
|dk ||6.6-7 ||7.64-8 ||9.65-10 |
|k ||2.6-3 ||3.26-3.74 ||3.76-4.24 |
|Slot # ||2# ||2# ||3# |
|Slot depth ||1.4-1.93 ||2.19-2.73 ||2.31-2.86 |
|h ||0.7-0.9 ||0.9-1.1 ||1.4-1.8 |
|d2 ||8.6-9 ||9.64-10 ||11.57-12 |
|s ||1-1.2 ||1.2-1.4 ||1.5-1.7 |
The above parameters for your reference.
Please inform the the model and length when you send the inquiry, like M4*8, thank you! We supply the products: Fastener---screw, bolt, nut, washer, rivet, pin, key; Pneumatic components---fittings, cylinders; Transmission part---ball screw, linear guide way, ball spline, linear motor module, ball transfer unit etc. Why Choose us? Over 10 years export experience;
