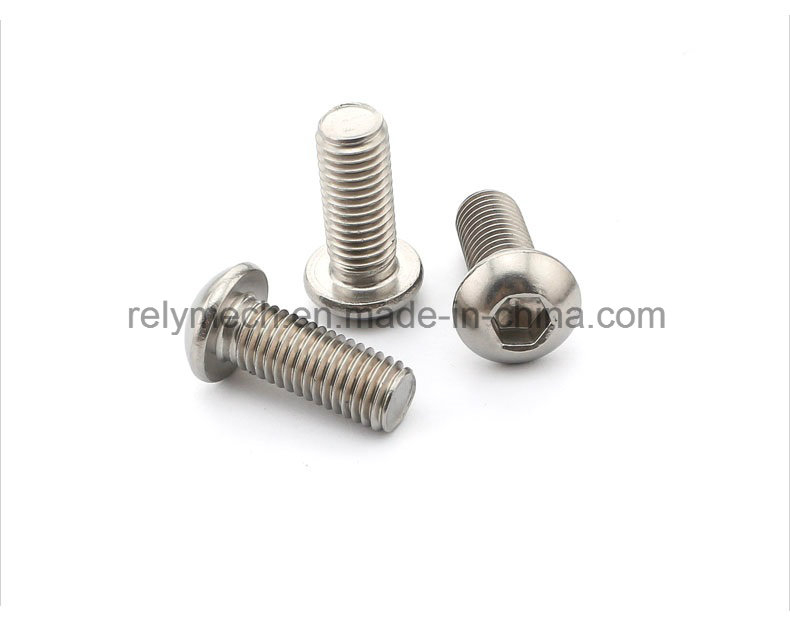

Stainless Steel Hex Socket Pan Head Machine Screw M3-M5

  • Model NO.: M3 M4 M5
  • Type: Pan Head
  • Connection: Common Bolt
  • Standard: DIN, GB
  • Transport Package: Plastic Bag, Paper Box, Carton
  • Origin: Cn
  • Material: Stainless Steel
  • Groove: Hexagon
  • Head Style: Round
  • Trademark: N/A
  • Specification: N/A
  • HS Code: 7318151001
Quantity:
Name Hex socket pan head screw
Material stainless steel 304
Standard GB
Packing Plastic bag or paper box

Specification: D is thread diameter, L is thread length, head is not included.

D*L D*L D*L
M3*6 M4*6 M5*8
M3*8 M4*8 M5*10
M3*10 M4*10 M5*12
M3*12 M4*12 M5*16
M3*16 M4*16 M5*20
M3*20 M4*20 M5*25
M3*25 M4*25 M5*30
M3*30 M4*30



  Stainless Steel Hex Socket Pan Head Machine Screw M3-M5 Stainless Steel Hex Socket Pan Head Machine Screw M3-M5 Stainless Steel Hex Socket Pan Head Machine Screw M3-M5 Stainless Steel Hex Socket Pan Head Machine Screw M3-M5 Stainless Steel Hex Socket Pan Head Machine Screw M3-M5

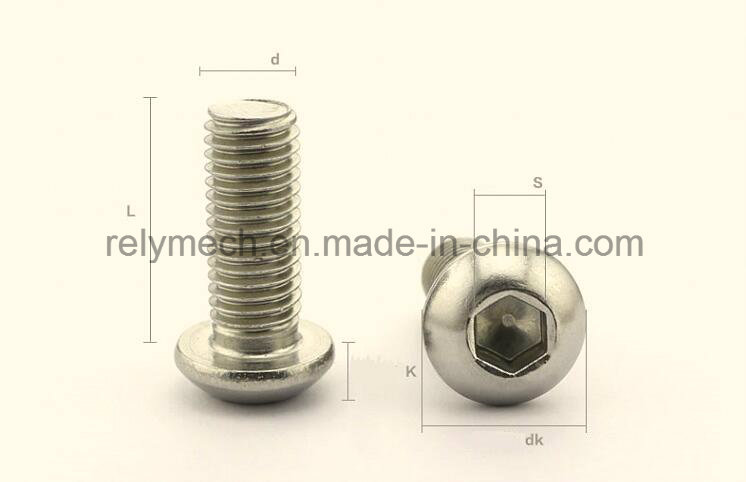

Nominal Dia.
d(mm)
Pitch
P(mm)
dk(mm) k(mm) s(mm) t(mm)
min
max min max min max min
M3 0.5 5.7 5.4 1.65 1.4 2.045 2.02 1.04
M4 0.7 7.6 7.24 2.2 1.95 2.56 2.52 1.3
M5 0.8 9.5 9.14 2.75 2.5 3.071 3.02 1.56
M6 1 10.5 10.07 3.3 3 4.084 4.02 2.08
M8 1.25 14 13.57 4.4 4.1 5.084 5.02 2.6
M10 1.5 17.5 17.07 5.5 5.2 6.095 6.02 3.12
M12 1.75 21 20.48 6.6 6.24 8.115 8.025 4.16
M16 2 28 27.48 8.8 8.44 10.115 10.025 5.2
Remark: Above datas are measured by manual for your reference, details in accordance with the final product.
