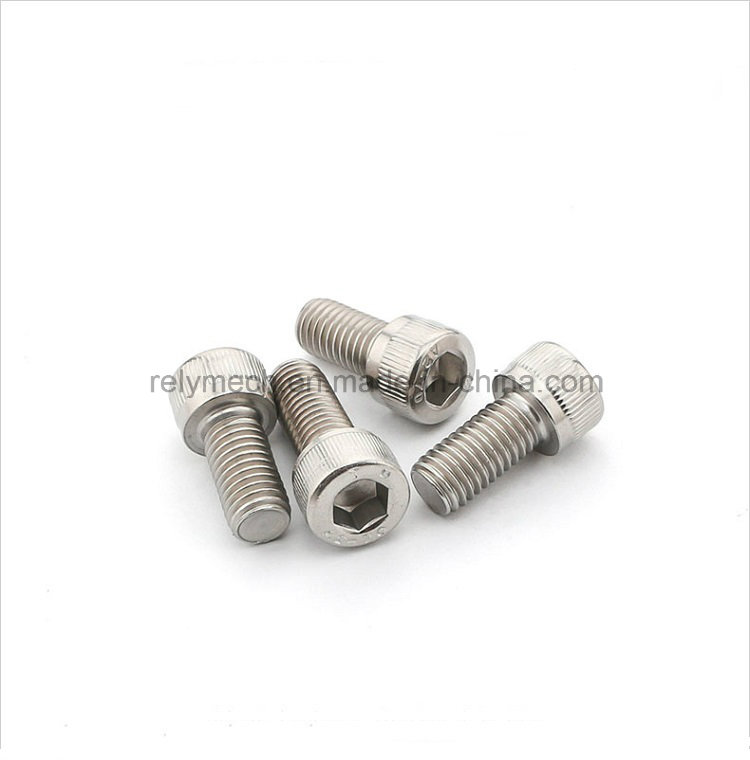

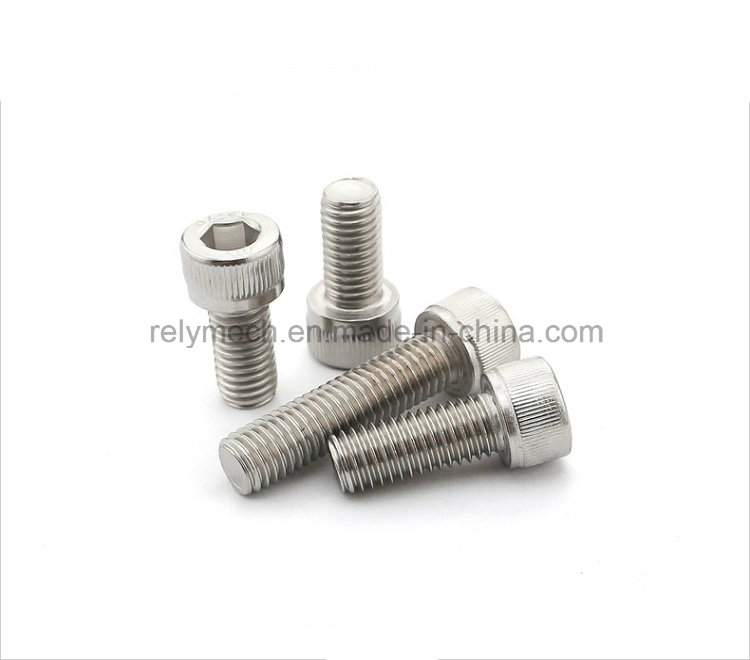

Stainless Steel 304 Hexagon Socket Cup Head Screw M4-M6

  • Model NO.: M4 M5 M6
  • Type: Cup Head
  • Connection: Common Bolt
  • Standard: DIN, GB
  • Transport Package: Plastic Bag, Paper Box, Carton
  • Origin: Cn
  • Material: Stainless Steel
  • Groove: Hexagon
  • Head Style: Hexagonal
  • Trademark: N/A
  • Specification: N/A
  • HS Code: 7318151001
Quantity:
Name Hex socket cup head screw
Material stainless steel 304
Standard DIN912
Packing Plastic bag or paper box

Specification: D is thread diameter, L is thread length, head is not included.

D*L D*L D*L
M4*6 M5*8 M6*10
M4*8 M5*10 M6*12
M4*10 M5*12 M6*16
M4*12 M5*16 M6*20
M4*16 M5*20 M6*25
M4*20 M5*25 M6*30
M4*25 M5*30 M6*35
M4*30 M5*35 M6*40
M4*35 M5*40 M6*45
M4*40 M5*50 M6*50
M4*50   M6*60
    M6*70
    M6*80
    M6*100


Stainless Steel 304 Hexagon Socket Cup Head Screw M4-M6 Stainless Steel 304 Hexagon Socket Cup Head Screw M4-M6 Stainless Steel 304 Hexagon Socket Cup Head Screw M4-M6 Stainless Steel 304 Hexagon Socket Cup Head Screw M4-M6

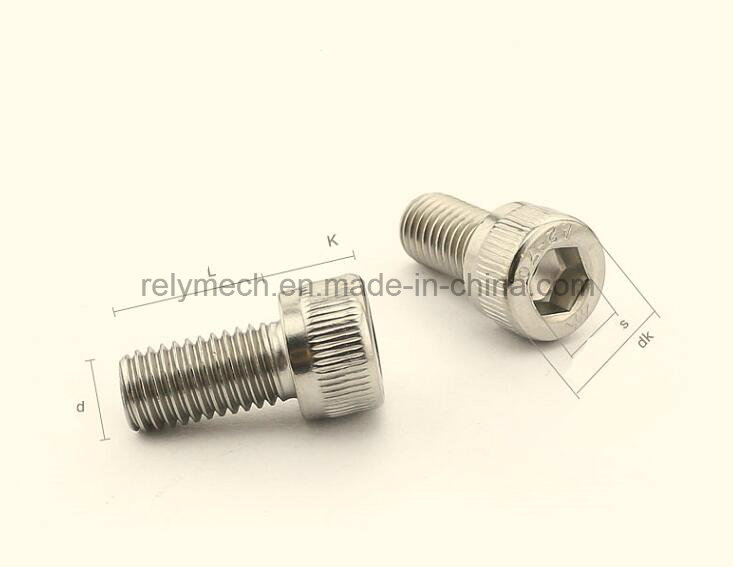

Nominal Dia.
d(mm)
Pitch
P(mm)
b(mm) dk(mm) k(mm) s(mm) t(mm)
min
max min max min max min
M1.4 0.3 14 2.74 2.46 1.4 1.26 1.36 1.32 0.6
M1.6 0.35 15 3.14 2.86 1.6 1.46 1.56 1.52 0.7
M2 0.4 16 3.98 3.62 2 1.86 1.56 1.52 1
M2.5 0.45 17 4.68 4.32 2.5 2.36 2.06 2.02 1.1
M3 0.5 18 5.68 5.32 3 2.86 2.58 2.52 1.3
M4 0.7 20 7.22 6.78 4 3.82 3.08 3.02 2
M5 0.8 22 8.72 8.28 5 4.82 4.095 4.02 2.5
M6 1 24 10.22 9.78 6 5.7 5.14 5.02 3
M8 1.25/1 28 13.27 12.73 8 7.64 6.14 6.02 4
M10 1.5/1.25/1 32 16.27 15.73 10 9.64 8.175 8.025 5
M12 1.75/1.5/1.25 36 18.27 17.73 12 11.57 10.18 10.025 6
M14 2/1.5 40 21.33 20.67 14 12.57 12.21 12.032 7
M16 2/1.5 44 24.33 23.67 16 15.57 14.21 14.032 8
M18 2.5/2/1.5 48 27.33 26.67 18 17.57 14.21 14.032 9
M20 2.5/2/1.5 52 30.33 29.67 20 19.48 17.23 17.05 10
M22 2.5/2/1.5 56 33.39 32.61 22 21.48 17.23 17.05 11
M24 3.0/2.0 60 36.36 35.61 24 23.48 19.28 19.065 12
M27 3.0/2.0 66 40.39 39.61 27 26.48 19.28 19.065 13.5
M30 3.5/2 72 45.39 44.61 30 29.48 22.28 22.065 15.6
Remark: Above datas are measured by manual for your reference, details in accordance with the final product.
