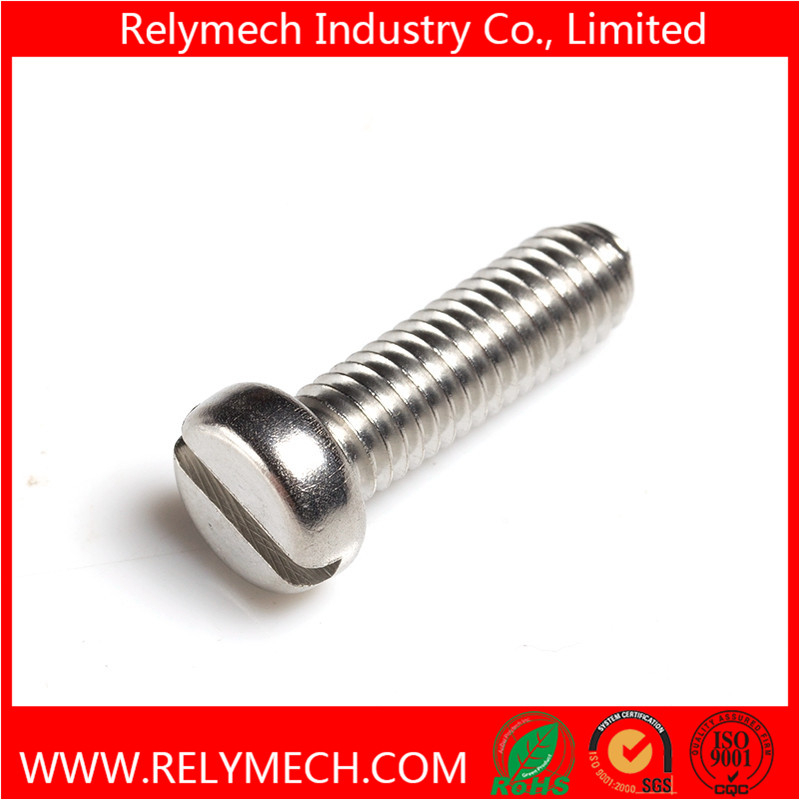

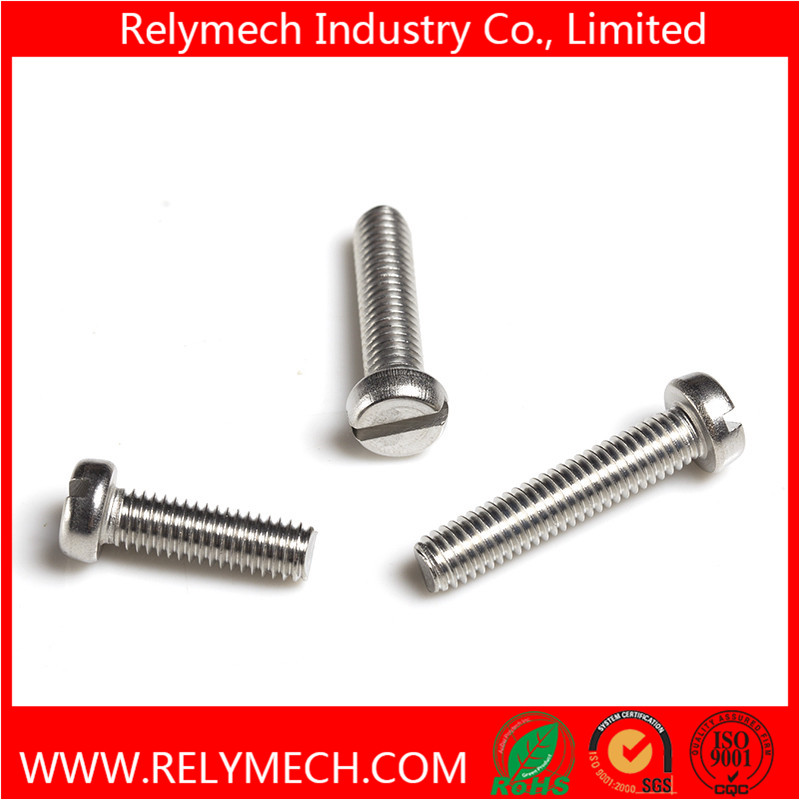

Slotted cheese head machine screw in stainless steel 304
Product name: Slotted cheese pan head machine screw
Head type: Slotted cheese head
Length: 3mm to 100mm
| Unit:mm |
|Model ||M1.6 ||M2 ||M2.5 ||M3 ||M4 ||M5 ||M6 |
|p ||0.35 ||0.4 ||0.45 ||0.5 ||0.7 ||0.8 ||1 |
|dk ||2.86-3 ||3.62-3.8 ||4.32-4.5 ||5.32-5.5 ||6.78-7 ||8.28-8.5 ||9.78-10 |
|k ||0.96-1.1 ||1.26-1.4 ||1.66-1.8 ||1.86-2 ||2.46-2.6 ||3.12-3.3 ||3.6-3.9 |
|s ||0.46-0.6 ||0.56-0.7 ||0.66-0.8 ||0.86-1 ||1.26-1.51 ||1.26-1.51 ||1.66-1.91 |
|t ||min 0.45 ||min 0.6 ||min 0.7 ||min 0.85 ||min 1.1 ||min 1.3 ||min 1.6 |
|d ||1.52-1.58 ||1.89-1.98 ||2.38-2.48 ||2.87-2.98 ||3.84-3.98 ||4.83-4.97 ||5.82-5.97 |
The above parameters for your reference.
Please inform the the model and length when you send the inquiry, like M2*5, thank you! We supply the products: Fastener---screw, bolt, nut, washer, rivet, pin, key; Pneumatic components---fittings, cylinders; Transmission part---ball screw, linear guide way, ball spline, linear motor module, ball transfer unit etc. Why Choose us? Over 10 years export experience;
