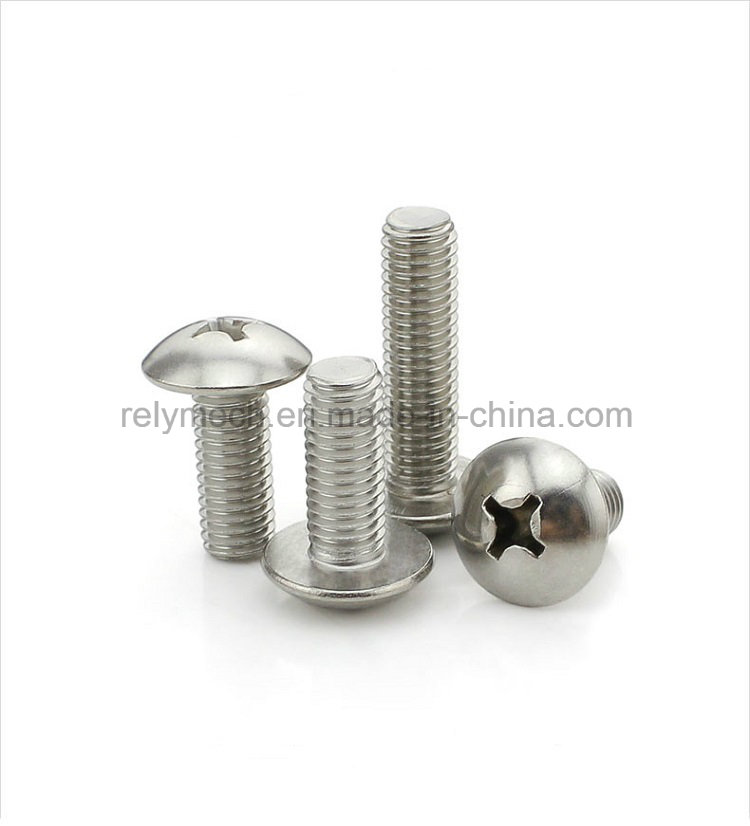

| Name | Round head cross screw |
| Material | stainless steel 304 |
| Standard | GB |
| Packing | Plastic bag or paper box |
Specification: D is thread diameter, L is thread length, head is not included. | D*L | D*L |
| M3*6 | M4*8 |
| M3*8 | M4*10 |
| M3*10 | M4*12 |
| M3*12 | M4*16 |
| M3*16 | M4*20 |
| M3*20 | M4*25 |
| M3*25 | M4*30 |
| | M4*35 |
Nominal Dia.
d(mm) | Pitch
P(mm) | dk(mm) | k(mm) | Slot no. |
| max | min | max | min |
| M2 | 0.4 | 4.5 | 4.1 | 1.3 | 1.1 | 1 |
| M2.2 | 0.45 | 5 | 4.6 | 1.4 | 1.2 |
| M2.5 | 0.45 | 5.7 | 5.3 | 1.6 | 1.4 |
| M3 | 0.5 | 6.9 | 6.4 | 2.05 | 1.75 |
| M3.5 | 0.6 | 8.1 | 7.6 | 2.35 | 2.05 | 2 |
| M4 | 0.7 | 9.4 | 8.9 | 2.65 | 2.35 |
| M4.5 | 0.75 | 10.6 | 10 | 2.95 | 2.65 |
| M5 | 0.8 | 11.8 | 11.2 | 3.25 | 2.95 |
| M6 | 1 | 14 | 13.3 | 3.9 | 3.5 | 3 |
| M8 | 1.25 | 17.8 | 17 | 5 | 4.6 |
Remark: Above datas are measured by manual for your reference, details in accordance with the final product.
Why Choose us?
Over 10 years export expenrience;
Less MOQ;
Competitve Price;
Quick response;
Short Delivery time;
Good service
Provide systematic solution for equipment components.
Relymech Industry Co., Limited, a rapid-developing industrial product distributer located in China, is focusing on equipment components systematic solution for manufacturer & maintenance business in mechanism transmission parts, electrical parts and pneumatic components etc.
Our team has more than 10 years' experience in design, process and sales in this industry. We commit to make continuously improving & innovation to meet customer's requirements and work closely with our partners to provide qualified parts with competitive price and best service to each customer.
