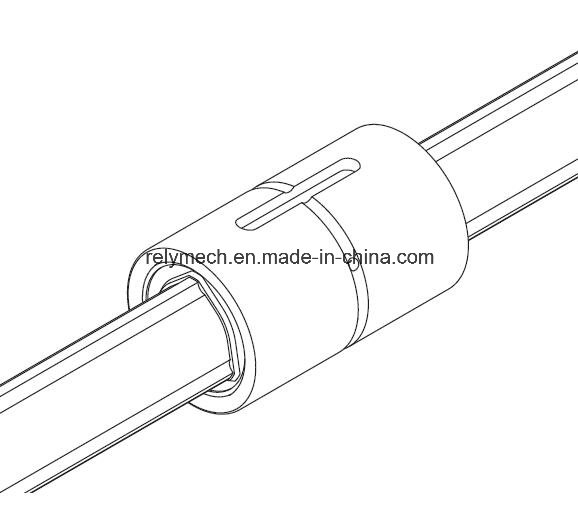

Lbst Heavy Load Ball Spline/Linear Ball Spline/Linear Motion Spline

  • Model NO.: LBST20/25/30/40/50/60/70/85/100/120/150
  • Specification: N/A
  • HS Code: 8483401000
  • Trademark: N/A
  • Origin: Cn
Quantity:
The Ball Spline is a rolling guide spline bearing. It is an innovative product with a ball rolling on a groove connected to the shaft, realizing allowable loads greater than with linear bushing and enabling torque transmission while making linear movements.

High torque type- LBS/LBST/LBF/LBR/LBH
This Ball Spline has no angular backlash to increase the rigidity by providing a preload with one spline nut since the spline shaft has 3 crests equidistantly arranged at 120 degrees on the circumference, each held by 2 rows (6 rows in total) of balls under a load .
Application:
Column and arm of industrial robot
Automatic loader
Transfer machine
Automatic conveyance system
Tire molding machine
Spindle of spot-welding machine
Guide shaft of high-speed automatic coating machine
Riveting machine
Wire winder
Work head of electric discharge machine
Spindle drive shaft of grinding machine
Speed gears
Precision indexing machine

Heavy load Ball spline-LBST20/LBST25/LBST30/LBST40/LBST50/LBST60/LBST70/LBST85/LBST100/LBST120/LBST150
Lbst Heavy Load Ball Spline/Linear Ball Spline/Linear Motion Spline

Model No. Spline nut dimension Basic torque rating Basic load rating
(Radial)
Static permissible moment Mass
Out dia. Length Key dimension Lubrication holes
D Tolerance L Tolerance b
H8
t
+0.05
0
l0 r d0 CT
Nm
C0T
Nm
C
kN
C0
kN
MA.1
Nm
MA.2
Nm
Spline
kg
Shaft
kg/m
LBST 20 30 0
-0.016
60 0
-0.2
4 2.5 26 0.5 2 90.2 213 9.4 20.1 103 632 0.17 1.8
LBST 25 37 70 0
-0.3
5 3 33 0.5 2 176 381 14.9 28.7 171 1060 0.29 2.7
LBST 30 45 80 7 4 41 1 3 312 657 22.5 41.4 295 1740 0.5 3.8
LBST 40 60 0
-0.019
100 10 4.5 55 1 3 696 1420 37.1 66.9 586 3540 1.1 6.8
LBST 50 75 112 15 5 60 1.5 4 1290 2500 55.1 94.1 941 5610 1.9 10.6
LBST 60 90 0
-0.022
127 18 6 68 1.5 4 1870 3830 66.2 121 1300 8280 3.3 15.6
LBST 70 100 135 18 6 68 2 4 3000 6090 90.8 164 2080 11800 3.8 21.3
LBST 85 120 155 0
-0.4
20 7 80 2.5 5 4740 9550 119 213 3180 17300 6.1 32
LBST 100 140 0
-0.025
175 28 9 93 3 5 6460 14400 137 271 4410 25400 10.4 45
LBST 120 160 200 0
-0.5
28 9 123 3.5 6 8380 19400 148 306 5490 32400 12.9 69.5
LBST 150 205 0
-0.029
250 32 10 157 3.5 6 13900 32200 196 405 8060 55400 28 116.6


How to select a ball spline?
1. Setting conditions
Stroke length, velocity, magnitude of the applied load, mounting space, operating frequency, required service life, dimension(No. of spline nuts, span), installation direction, environment, accuracy.
2. Selecting a type
High torque type-LBS/LBST/LBF/LBR/LBH
Medium torque type-LT/LF/LT-X
Rotary type-LBG/LBGT/LTR/LTR-A
3. Studying the spline shaft strength
Estimating the spline shaft diameter/length, permissible load on the spling shaft, displacement of the spline shaft(deflection, torsion), method for fixing the spline shaft.
4. Predicting the service life, compared with the required service life.
5. Selecting a preload
6. Determining the accuracy
7. Selection according to the environment
