Lt Medium Torque Cylinder Ball Spline/Linear Motion Spline/Linear Ball Spline

  • Model NO.: LT4~100
  • Specification: N/A
  • HS Code: 8483401000
  • Trademark: N/A
  • Origin: Cn
Quantity:
The Ball Spline is a rolling guide spline bearing. It is an innovative product with a ball rolling on a groove connected to the shaft, realizing allowable loads greater than with linear bushing and enabling torque transmission while making linear movements.

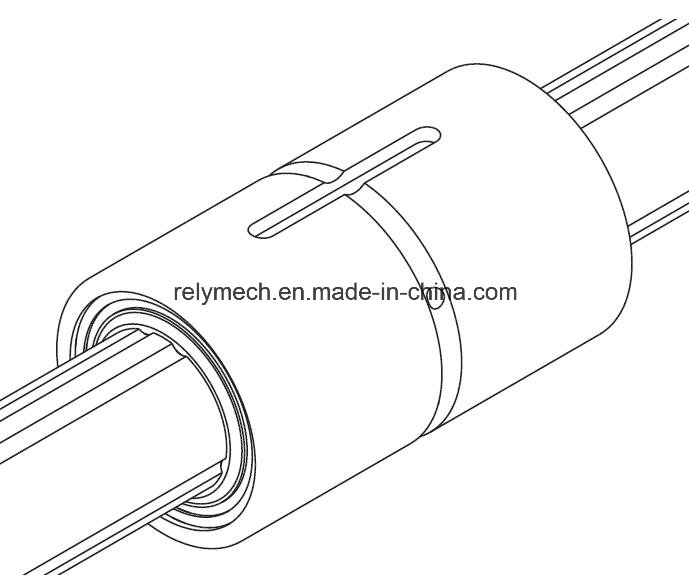

Medium torque type-LT-LF
This Ball Spline has a large load capacity in the radial and torque directions since the spline shaft has 2 to 3 crests on the circumference, each held by 2 rows (4 or 6 rows in total) of balls under a load in order to reasonably provide a preload.

Application:
Die-set shaft and similar applications requiring straight motion under a heavy load;
Loading system and similar applications requiring rotation to a given angle at a fixed position
Automatic gas-welding machine spindle and similar applications requiring a whirl-stop on one shaft
Column and arm of industrial robot
Spot-welding machine
Riveting machine
Book-binding machine
Automatic filler
XY recorders
Automatic spinner
Optical measuring instrument

Cylinder type-LT Nominal diameter 4~100mm


Lt Medium Torque Cylinder Ball Spline/Linear Motion Spline/Linear Ball Spline
Model No. Spline nut dimension Shaft Dia. Balls columns Basic torque rating Basic load rating
(Radial)
Static permissible moment Mass
Out dia. Length Key dimension Lubrication holes
D Tolerance L Tolerance b
H8
t
+0.05
0
l0 r d0 D0
h7
CT
Nm
C0T
Nm
C
kN
C0
kN
MA.1
Nm
MA.2
Nm
Spline nut
g
Shaft
kg/m
LT 4 10 0
-0.009
16 0
-0.2
2 1.2 6 0.5 - 4 4 0.59 0.78 0.44 0.61 0.88 6.4 5.2 0.1
LT 5 12 0
-0.011
20 2.5 1.2 8 0.5 - 5 4 0.88 1.37 0.66 0.88 1.5 11.6 9.1 0.15
LT 6 14 25 2.5 1.2 10.5 0.5 1 6 4 0.98 1.96 1.18 2.16 4.9 36.3 17 0.23
LT 8 16 25 2.5 1.2 10.5 0.5 1.5 8 4 1.96 2.94 1.47 2.55 5.9 44.1 18 0.4
LT 10 21 0
-0.013
33 3 1.5 13 0.5 1.5 10 4 3.92 7.84 2.84 4.9 15.7 98 50 0.62
LT13 24 36 3 1.5 15 0.5 1.5 13 4 5.88 10.8 3.53 5.78 19.6 138 55 1.1
LT 16 31 50 3.5 2 17.5 0.5 2 16 6 31.4 34.3 7.06 12.6 67.6 393 165 1.6
LT 20 35 0
-0.016
63 4 2.5 29 0.5 2 20 6 56.9 55.9 10.2 17.8 118 700 225 2.5
LT 25 42 71 0
-0.3
4 2.5 36 0.5 3 25 6 105 103 15.2 25.8 210 1140 335 3.9
LT 30 47 80 4 2.5 42 0.5 3 30 6 171 148 20.5 34 290 1710 375 5.6
LT 40 64 0
-0.019
100 6 3.5 52 0.5 4 40 6 419 377 37.8 60.5 687 3760 1000 9.9
LT 50 80 125 8 4 58 1 4 50 6 842 769 60.9 94.5 1340 7350 1950 15.5
LT 60 90 0
-0.022
140 0
-0.4
12 5 67 1 5 60 6 1220 1040 73.5 111.7 1600 9990 2500 22.3
LT 80 120 160 16 6 76 2 5 80 6 2310 1920 104.9 154.8 2510 16000 4680 39.6
LT 100 150 0
-0.025
185 20 7 110 2.5 5 100 6 3730 3010 136.2 195 3400 24000 9550 61.8

How to select a ball spline?
1. Setting conditions
Stroke length, velocity, magnitude of the applied load, mounting space, operating frequency, required service life, dimension(No. of spline nuts, span), installation direction, environment, accuracy.
2. Selecting a type
High torque type-LBS/LBST/LBF/LBR/LBH
Medium torque type-LT/LF/LT-X
Rotary type-LBG/LBGT/LTR/LTR-A
3. Studying the spline shaft strength
Estimating the spline shaft diameter/length, permissible load on the spling shaft, displacement of the spline shaft(deflection, torsion), method for fixing the spline shaft.
4. Predicting the service life, compared with the required service life.
5. Selecting a preload
6. Determining the accuracy
7. Selection according to the environment
