Lbs Medium Load Ball Spline/Linear Motion Spline/Linear Ball Spline/Linear Screw Spline

  • Model NO.: LBS20/LBS25/LBS30/LBS40/LBS50/LBS70/LBS85/LBS100
  • Specification: N/A
  • HS Code: 8483401000
  • Trademark: N/A
  • Origin: Cn
Quantity:

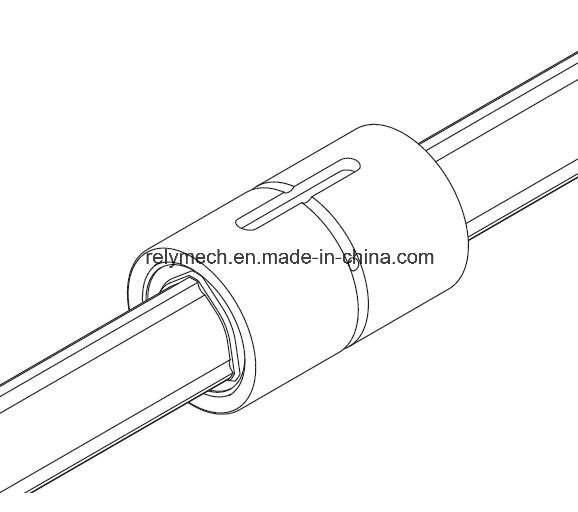

The Ball Spline is a rolling guide spline bearing. It is an innovative product with a ball rolling on a groove connected to the shaft, realizing allowable loads greater than with linear bushing and enabling torque transmission while making linear movements.

High torque type- LBS/LBST/LBF/LBR/LBH
This Ball Spline has no angular backlash to increase the rigidity by providing a preload with one spline nut since the spline shaft has 3 crests equidistantly arranged at 120 degrees on the circumference, each held by 2 rows (6 rows in total) of balls under a load .
Application:
Column and arm of industrial robot
Automatic loader
Transfer machine
Automatic conveyance system
Tire molding machine
Spindle of spot-welding machine
Guide shaft of high-speed automatic coating machine
Riveting machine
Wire winder
Work head of electric discharge machine
Spindle drive shaft of grinding machine
Speed gears
Precision indexing machine

Medium load Ball spline-LBS15/LBS20/LBS30/LBS40/LBS50/LBS70/LBS85/LBS100
Lbs Medium Load Ball Spline/Linear Motion Spline/Linear Ball Spline/Linear Screw Spline
Model No. Spline nut dimension Basic torque rating Basic load rating
(Radial)
Static permissible moment Mass
Out dia. Length Key dimension Lubrication holes
D Tolerance L Tolerance b
H8
t
+0.05
0
l0 r d0 CT
Nm
C0T
Nm
C
kN
C0
kN
MA.1
Nm
MA.2
Nm
Spline
kg
Shaft
kg/m
LBS 15 23 0
-0.013
40 0
-0.2
3.5 2 20 0.5 2 30.4 74.5 4.4 8.4 25.4 185 0.06 1
LBS 20 30 0
-0.016
50 4 2.5 26 0.5 2 74.5 160 7.8 14.9 60.2 408 0.14 1.8
LBS 25 37 60 0
-0.3
5 3 33 0.5 2 154 307 13 23.5 118 760 0.25 2.7
LBS 30 45 70 7 4 41 1 3 273 538 19.3 33.8 203 1270 0.44 3.8
LBS 40 60 0
-0.019
90 10 4.5 55 1 3 599 1140 31.9 53.4 387 2640 1 6.8
LBS 50 75 100 15 5 60 1.5 4 1100 1940 46.6 73 594 4050 1.7 10.6
LBS 70 100 0
-0.022
110 18 6 68 2 4 2190 3800 66.4 102 895 6530 3.1 21.3
LBS 85 120 140 0
-0.4
20 7 80 2.5 5 3620 6360 90.5 141 2000 12600 5.5 32
LBS 100 140 0
-0.025
160 28 9 93 3 5 5190 12600 126 237 3460 20600 9.5 45


How to select a ball spline?
1. Setting conditions
Stroke length, velocity, magnitude of the applied load, mounting space, operating frequency, required service life, dimension(No. of spline nuts, span), installation direction, environment, accuracy.
2. Selecting a type
High torque type-LBS/LBST/LBF/LBR/LBH
Medium torque type-LT/LF/LT-X
Rotary type-LBG/LBGT/LTR/LTR-A
3. Studying the spline shaft strength
Estimating the spline shaft diameter/length, permissible load on the spling shaft, displacement of the spline shaft(deflection, torsion), method for fixing the spline shaft.
4. Predicting the service life, compared with the required service life.
5. Selecting a preload
6. Determining the accuracy
7. Selection according to the environment
