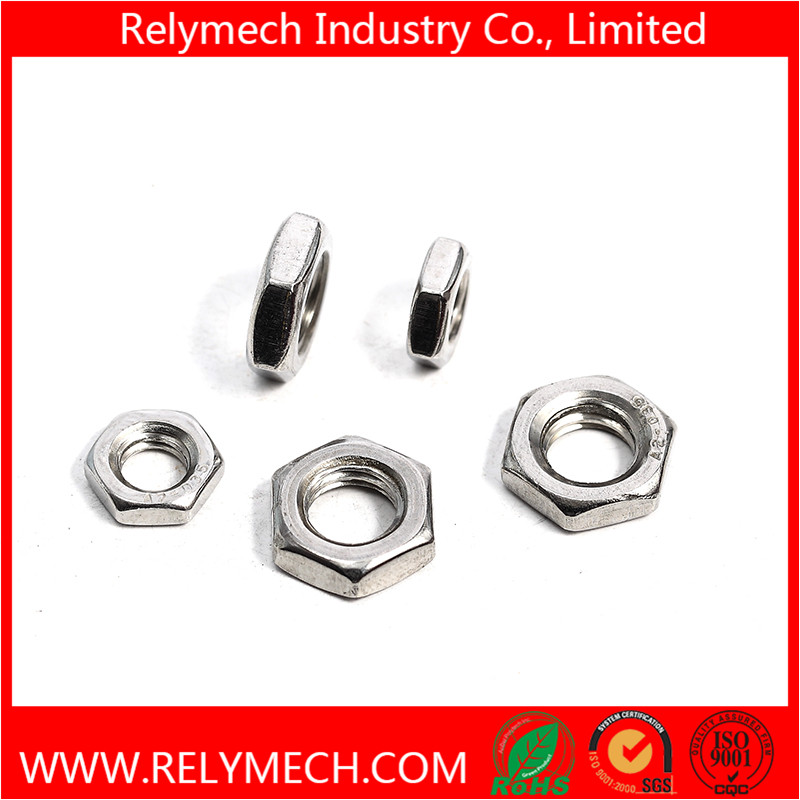

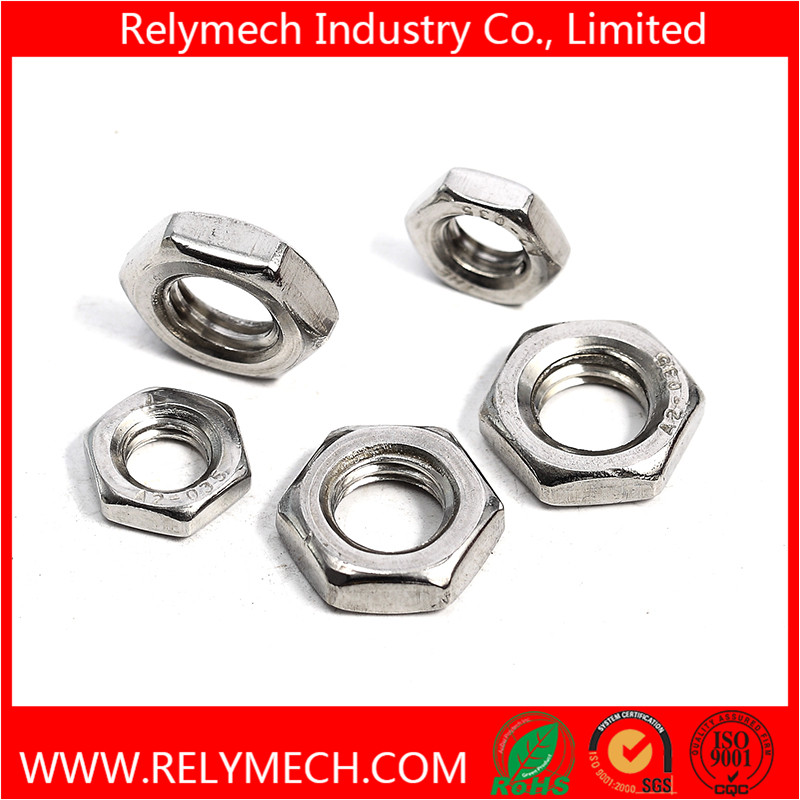

Stainless Steel Hex Thin Nut M3-M24

  • Model NO.: M3-M24
  • Type: Hexagon Head
  • Head Style: Hexagonal
  • Grade: 4.8
  • Transport Package: Plastic Bag, Carton, Pallet
  • Origin: Jiangsu, China
  • Material: Stainless Steel
  • Connection: Common Bolt
  • Standard: DIN, ANSI, GB
  • Trademark: OEM
  • Specification: M3 to M24
  • HS Code: 731815
Quantity:
Stainless steel hex thin nut M3-M24

Product name: Hex thin nut
Standard: DIN439
Material: SUS304
Head type: hex
Diameter size:M3-M24

Stainless Steel Hex Thin Nut M3-M24
d M3 M4 M5 M6 M8 M10 M12
p 0.5 0.7 0.8 1 1.25 1.5 1.75
e min 6.01 7.66 8.79 11.05 14.3 17.77 20.03
m max 1.8 2.2 2.7 3.2 4 5 6
mw min 1.2 1.6 2 2.3 3 3.8 4.6
s max 5.5 7 8 10 13 16 18
mass 0.2 0.43 0.66 1.29 2.72 5.21 7.51
d M14 M16 M18 M20 M22 M24
p 2 2 2.5 2.5 2.5 3
e min 23.36 26.75 29.56 32.95 37.29 39.5
m max 7 8 9 10 11 12
mw min 5.1 5.9 6.7 7.3 7.9 8.7
s max 21 24 27 30 34 36
mass 11.46 17.18 23.59 31.43 44.85 54.2
The above parameters for your reference.

Stainless Steel Hex Thin Nut M3-M24 Stainless Steel Hex Thin Nut M3-M24 Stainless Steel Hex Thin Nut M3-M24 Stainless Steel Hex Thin Nut M3-M24 Stainless Steel Hex Thin Nut M3-M24

We supply the products:
Fastener---screw, bolt, nut, washer, rivet, pin, key;
Pneumatic components---fittings, cylinders;
Transmission part---ball screw, linear guide way, ball spline, linear motor module, ball transfer unit etc.

Why Choose us?
Over 10 years export experience;
Less MOQ;
Competitive Price;
Quick response;
Short Delivery time;
Good service
Provide systematic solution for equipment components.


Relymech Industry Co., Limited, a rapid-developing industrial product distributer located in China, is focusing on equipment components systematic solution for manufacturer & maintenance business in mechanism transmission parts, fasteners and pneumatic components etc.

Our team has more than 10 years' experience in design, process and sales in this industry. We commit to make continuously improving & innovation to meet customer's requirements and work closely with our partners to provide qualified parts with competitive price and best service to each customer!
