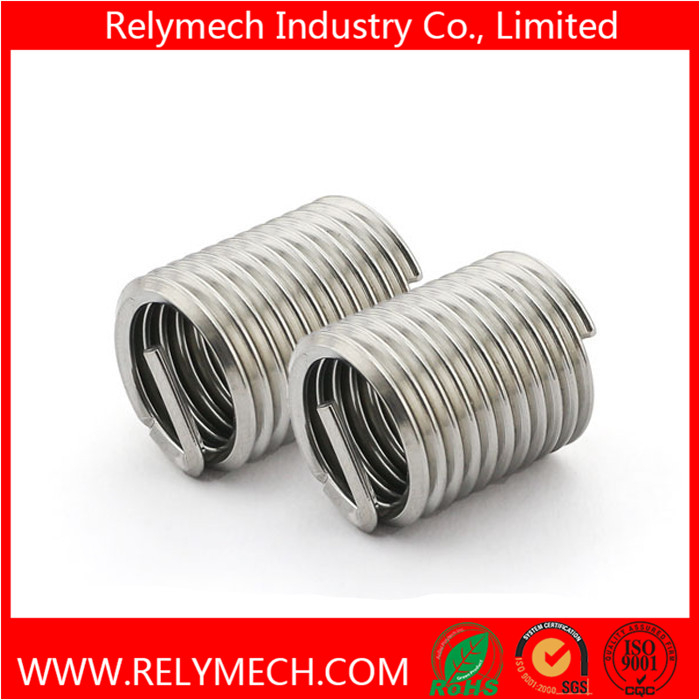

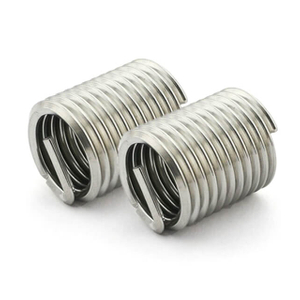

Stainless Steel 304 Wire Thread Insert Screw Insert

  • Model NO.: M3-1D~M30-3D
  • Type: Common
  • Rotation Direction: Right Rotation
  • Customized: Non-Customized
  • Transport Package: Plastic Bag, Carton, Pallet
  • Origin: Jiangsu, China
  • Material: Stainless Steel
  • Usage: Auto
  • Certification: ISO, GS
  • Trademark: OEM
  • Specification: M3-1D~M30-3D
  • HS Code: 731815
Quantity:
Stainless steel 304 wire thread insert/ screw insert

Product name:  wire thread insert/ screw insert
Material: stainless steel 304
Spec.: M3-1D/1.5D/2D/2.5D/3D~M30-1D/1.5D/2D/2.5D/3D

d p L*d mm W DZ d0 Mass
Kg/1000pcs
2 0.4 1d 2 2.9 2.62-2.76 2 0.02
1.5d 3 4.7 0.03
2d 4 6.5 0.05
2.5 0.45 1d 2.5 3.6 3.3-3.5 2.6 0.04
1.5d 3.8 5.9 0.06
2d 5 8.2 0.09
2.5d 6.3 10.5 0.11
3d 7.5 12.8 0.13
3 0.5 1d 3 4.2 3.8-4 3.1 0.07
1.5d 4.5 6.8 0.1
2d 6 9.4 0.14
2.5d 7.5 12 0.17
3d 9 14.6 0.21
3.5 0.6 1d 3.5 4 4.55-4.75 3.7 0.11
1.5d 5.3 6.4 0.17
2d 7 8.9 0.22
2.5d 8.8 11.4 0.28
3d 10.5 13.9 0.34
4 0.7 1d 4 4 5.05-5.25 4.2 0.17
1.5d 6 6.6 0.26
2d 8 9.1 0.34
2.5d 10 11.7 0.43
3d 12 14.2 0.51
5 0.8 1d 5 4.4 6.35-6.6 5.2 0.31
1.5d 7.5 7.1 0.46
2d 10 9.9 0.61
2.5d 12.5 12.6 0.76
3d 15 15.3 0.92
6 1 1d 6 4.3 7.6-7.85 6.3 0.55
1.5d 9 6.9 0.83
2d 12 9.6 1.1
2.5d 15 12.2 1.38
3d 18 14.9 1.65
8 1.25 1d 8 4.8 9.85-10.1 8.3 1.22
1.5d 12 7.7 1.83
2d 16 10.6 2.45
2.5d 20 13.5 3.06
3d 24 16.5 3.67
10 1.5 1d 10 5 12.1-12.5 10.4 2.29
1.5d 15 8.1 3.44
2d 20 11.2 4.59
2.5d 25 14.2 5.73
3d 30 17.3 6.88
12 1.75 1d 12 5.3 14.4-14.8 12.4 3.85
1.5d 18 8.4 5.78
2d 24 11.6 7.71
2.5d 30 14.8 9.63
3d 36 18 11.56
14 2 1d 14 5.4 16.8-17.2 14.5 5.99
1.5d 21 8.7 8.99
2d 28 11.9 11.99
2.5d 35 15.2 14.98
3d 42 18.4 17.98
16 2 1d 16 6.3 19-19.4 16.5 7.83
1.5d 24 10 11.74
2d 32 13.7 15.66
2.5d 40 17.5 19.57
3d 48 21.2 23.49
18 2.5 1d 18 5.6 21.5-22 18.6 12.39
1.5d 27 9 18.58
2d 36 12.3 24.77
2.5d 45 15.7 30.96
3d 54 19 37.16
20 2.5 1d 20 6.5 23.7-24.2 20.6 15.29
1.5d 30 10 22.94
2d 40 13.8 30.58
2.5d 50 17.5 38.23
3d 60 21.2 45.87
22 2.5 1d 22 6.9 26.3-26.8 22.6 18.5
1.5d 33 11 27.75
2d 44 15 37
2.5d 55 19 46.25
3d 66 23 55.5
24 3 1d 24 6.3 28.6-29.1 24.8 26.42
1.5d 36 10 39.63
2d 48 13.7 52.84
2.5d 60 17.5 66.05
3d 72 21.2 79.26
27 3 1d 27 7.2 32.2-32.7 27.8 33.44
1.5d 40.5 11.3 50.16
2d 54 15.4 66.88
2.5d 67.5 19.5 83.6
30 3.5 1d 30 6.9 35.2-35.7 30.9 48.16
1.5d 45 11 72.25
2d 60 15 96.33
2.5d 75 19 120.41
3d 90 23 144.49

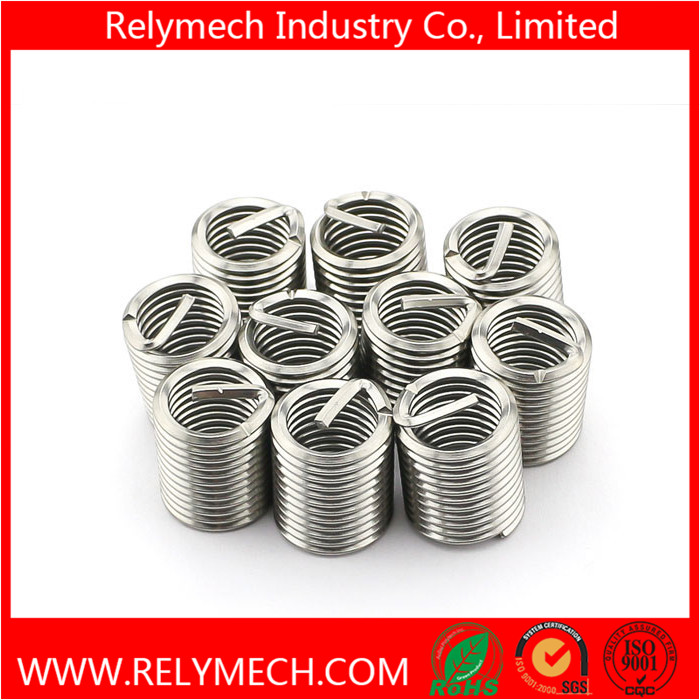

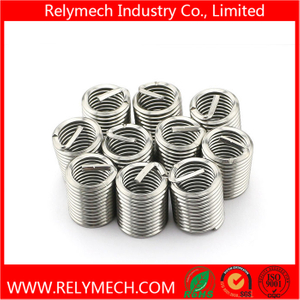

Stainless Steel 304 Wire Thread Insert Screw Insert
Stainless Steel 304 Wire Thread Insert Screw Insert Stainless Steel 304 Wire Thread Insert Screw Insert
We supply the products:
Fastener---screw, bolt, nut, washer, rivet, pin, key;
Pneumatic components---fittings, cylinders;
Transmission part---ball screw, linear guide way, ball spline, linear motor module, ball transfer unit etc.

Why Choose us?
Over 10 years export experience;
Less MOQ;
Competitive Price;
Quick response;
Short Delivery time;
Good service
Provide systematic solution for equipment components.


Relymech Industry Co., Limited, a rapid-developing industrial product distributer located in China, is focusing on equipment components systematic solution for manufacturer & maintenance business in mechanism transmission parts, fasteners and pneumatic components etc.

Our team has more than 10 years' experience in design, process and sales in this industry. We commit to make continuously improving & innovation to meet customer's requirements and work closely with our partners to provide qualified parts with competitive price and best service to each customer!
