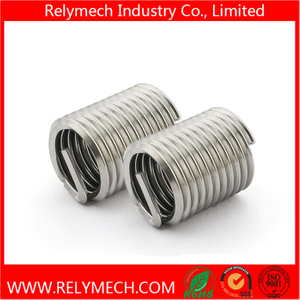

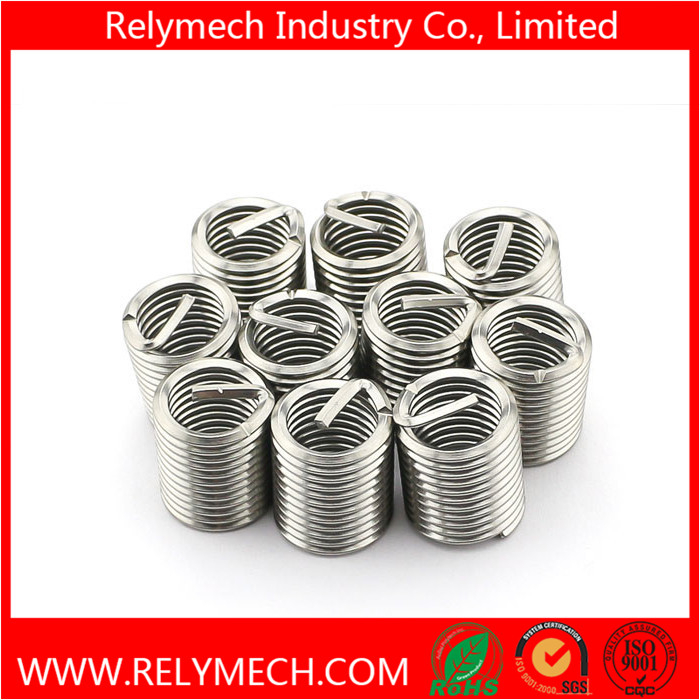

Stainless steel 304 DIN8140 wire thread insert screw insert
Product name: wire thread insert screw insert
Material: stainless steel 304
Standard:DIN8140
Spec.: M3-1D/1.5D/2D/2.5D/3D~M30-1D/1.5D/2D/2.5D/3D
| d | p | L*d | mm | W | DZ | d0 | Mass Kg/1000pcs |
| 2 | 0.4 | 1d | 2 | 2.9 | 2.62-2.76 | 2 | 0.02 |
| 1.5d | 3 | 4.7 | 0.03 | ||||
| 2d | 4 | 6.5 | 0.05 | ||||
| 2.5 | 0.45 | 1d | 2.5 | 3.6 | 3.3-3.5 | 2.6 | 0.04 |
| 1.5d | 3.8 | 5.9 | 0.06 | ||||
| 2d | 5 | 8.2 | 0.09 | ||||
| 2.5d | 6.3 | 10.5 | 0.11 | ||||
| 3d | 7.5 | 12.8 | 0.13 | ||||
| 3 | 0.5 | 1d | 3 | 4.2 | 3.8-4 | 3.1 | 0.07 |
| 1.5d | 4.5 | 6.8 | 0.1 | ||||
| 2d | 6 | 9.4 | 0.14 | ||||
| 2.5d | 7.5 | 12 | 0.17 | ||||
| 3d | 9 | 14.6 | 0.21 | ||||
| 3.5 | 0.6 | 1d | 3.5 | 4 | 4.55-4.75 | 3.7 | 0.11 |
| 1.5d | 5.3 | 6.4 | 0.17 | ||||
| 2d | 7 | 8.9 | 0.22 | ||||
| 2.5d | 8.8 | 11.4 | 0.28 | ||||
| 3d | 10.5 | 13.9 | 0.34 | ||||
| 4 | 0.7 | 1d | 4 | 4 | 5.05-5.25 | 4.2 | 0.17 |
| 1.5d | 6 | 6.6 | 0.26 | ||||
| 2d | 8 | 9.1 | 0.34 | ||||
| 2.5d | 10 | 11.7 | 0.43 | ||||
| 3d | 12 | 14.2 | 0.51 | ||||
| 5 | 0.8 | 1d | 5 | 4.4 | 6.35-6.6 | 5.2 | 0.31 |
| 1.5d | 7.5 | 7.1 | 0.46 | ||||
| 2d | 10 | 9.9 | 0.61 | ||||
| 2.5d | 12.5 | 12.6 | 0.76 | ||||
| 3d | 15 | 15.3 | 0.92 | ||||
| 6 | 1 | 1d | 6 | 4.3 | 7.6-7.85 | 6.3 | 0.55 |
| 1.5d | 9 | 6.9 | 0.83 | ||||
| 2d | 12 | 9.6 | 1.1 | ||||
| 2.5d | 15 | 12.2 | 1.38 | ||||
| 3d | 18 | 14.9 | 1.65 | ||||
| 8 | 1.25 | 1d | 8 | 4.8 | 9.85-10.1 | 8.3 | 1.22 |
| 1.5d | 12 | 7.7 | 1.83 | ||||
| 2d | 16 | 10.6 | 2.45 | ||||
| 2.5d | 20 | 13.5 | 3.06 | ||||
| 3d | 24 | 16.5 | 3.67 | ||||
| 10 | 1.5 | 1d | 10 | 5 | 12.1-12.5 | 10.4 | 2.29 |
| 1.5d | 15 | 8.1 | 3.44 | ||||
| 2d | 20 | 11.2 | 4.59 | ||||
| 2.5d | 25 | 14.2 | 5.73 | ||||
| 3d | 30 | 17.3 | 6.88 | ||||
| 12 | 1.75 | 1d | 12 | 5.3 | 14.4-14.8 | 12.4 | 3.85 |
| 1.5d | 18 | 8.4 | 5.78 | ||||
| 2d | 24 | 11.6 | 7.71 | ||||
| 2.5d | 30 | 14.8 | 9.63 | ||||
| 3d | 36 | 18 | 11.56 | ||||
| 14 | 2 | 1d | 14 | 5.4 | 16.8-17.2 | 14.5 | 5.99 |
| 1.5d | 21 | 8.7 | 8.99 | ||||
| 2d | 28 | 11.9 | 11.99 | ||||
| 2.5d | 35 | 15.2 | 14.98 | ||||
| 3d | 42 | 18.4 | 17.98 | ||||
| 16 | 2 | 1d | 16 | 6.3 | 19-19.4 | 16.5 | 7.83 |
| 1.5d | 24 | 10 | 11.74 | ||||
| 2d | 32 | 13.7 | 15.66 | ||||
| 2.5d | 40 | 17.5 | 19.57 | ||||
| 3d | 48 | 21.2 | 23.49 | ||||
| 18 | 2.5 | 1d | 18 | 5.6 | 21.5-22 | 18.6 | 12.39 |
| 1.5d | 27 | 9 | 18.58 | ||||
| 2d | 36 | 12.3 | 24.77 | ||||
| 2.5d | 45 | 15.7 | 30.96 | ||||
| 3d | 54 | 19 | 37.16 | ||||
| 20 | 2.5 | 1d | 20 | 6.5 | 23.7-24.2 | 20.6 | 15.29 |
| 1.5d | 30 | 10 | 22.94 | ||||
| 2d | 40 | 13.8 | 30.58 | ||||
| 2.5d | 50 | 17.5 | 38.23 | ||||
| 3d | 60 | 21.2 | 45.87 | ||||
| 22 | 2.5 | 1d | 22 | 6.9 | 26.3-26.8 | 22.6 | 18.5 |
| 1.5d | 33 | 11 | 27.75 | ||||
| 2d | 44 | 15 | 37 | ||||
| 2.5d | 55 | 19 | 46.25 | ||||
| 3d | 66 | 23 | 55.5 | ||||
| 24 | 3 | 1d | 24 | 6.3 | 28.6-29.1 | 24.8 | 26.42 |
| 1.5d | 36 | 10 | 39.63 | ||||
| 2d | 48 | 13.7 | 52.84 | ||||
| 2.5d | 60 | 17.5 | 66.05 | ||||
| 3d | 72 | 21.2 | 79.26 | ||||
| 27 | 3 | 1d | 27 | 7.2 | 32.2-32.7 | 27.8 | 33.44 |
| 1.5d | 40.5 | 11.3 | 50.16 | ||||
| 2d | 54 | 15.4 | 66.88 | ||||
| 2.5d | 67.5 | 19.5 | 83.6 | ||||
| 30 | 3.5 | 1d | 30 | 6.9 | 35.2-35.7 | 30.9 | 48.16 |
| 1.5d | 45 | 11 | 72.25 | ||||
| 2d | 60 | 15 | 96.33 | ||||
| 2.5d | 75 | 19 | 120.41 | ||||
| 3d | 90 | 23 | 144.49 |
We supply the products:
Fastener---screw, bolt, nut, washer, rivet, pin, key;
Pneumatic components---fittings, cylinders;
Transmission part---ball screw, linear guide way, ball spline, linear motor module, ball transfer unit etc.
Why Choose us?
Over 10 years export experience;
Less MOQ;
Competitive Price;
Quick response;
Short Delivery time;
Good service
Provide systematic solution for equipment components.
Relymech Industry Co., Limited, a rapid-developing industrial product distributer located in China, is focusing on equipment components systematic solution for manufacturer & maintenance business in mechanism transmission parts, fasteners and pneumatic components etc.
Our team has more than 10 years' experience in design, process and sales in this industry. We commit to make continuously improving & innovation to meet customer's requirements and work closely with our partners to provide qualified parts with competitive price and best service to each customer!
