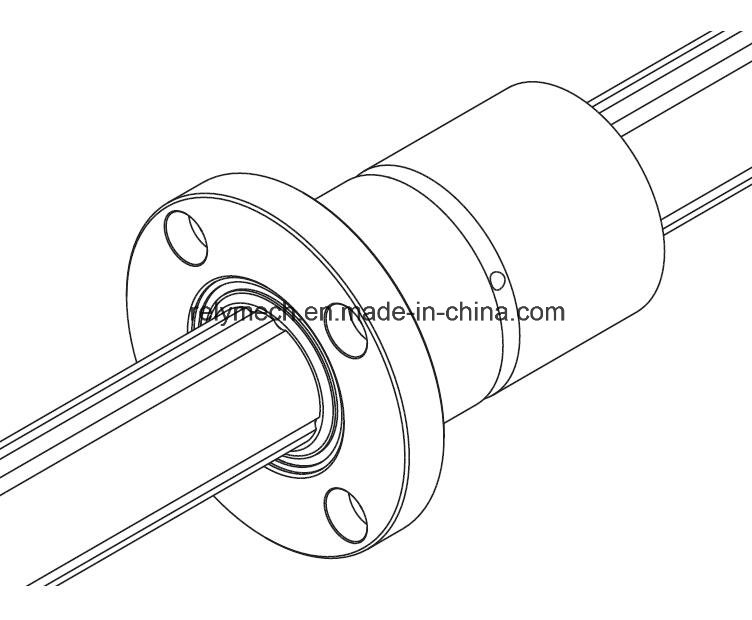

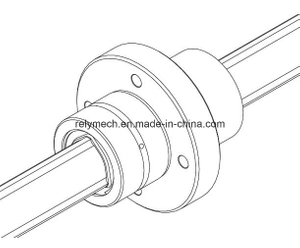

Lf Ball Spline/Linear Motion Spline/Linear Ball Spline with Flange Nut

  • Model NO.: LF6/LF8/LF10/LF13/LF16/LF20/LF25/LF30/LF40/LF50
  • Trademark: N/A
  • Origin: Cn
  • Shape: Flange
  • Specification: N/A
  • HS Code: 8483401000
Quantity:
The Ball Spline is a rolling guide spline bearing. It is an innovative product with a ball rolling on a groove connected to the shaft, realizing allowable loads greater than with linear bushing and enabling torque transmission while making linear movements.

Medium torque type-LT-LF
This Ball Spline has a large load capacity in the radial and torque directions since the spline shaft has 2 to 3 crests on the circumference, each held by 2 rows (4 or 6 rows in total) of balls under a load in order to reasonably provide a preload.

Application:
Die-set shaft and similar applications requiring straight motion under a heavy load;
Loading system and similar applications requiring rotation to a given angle at a fixed position
Automatic gas-welding machine spindle and similar applications requiring a whirl-stop on one shaft
Column and arm of industrial robot
Spot-welding machine
Riveting machine
Book-binding machine
Automatic filler
XY recorders
Automatic spinner
Optical measuring instrument

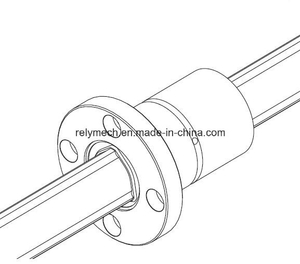

Flange type-LF Nominal diameter 6~50mm
Lf Ball Spline/Linear Motion Spline/Linear Ball Spline with Flange Nut
Model No. Spline nut dimension Shaft Dia. Balls columns Basic torque rating Basic load rating
(Radial)
Static permissible moment Mass
Out dia. Length Flange Dia. H F C r Lubrication holes PCD Mounting hole
D Tolerance L Tolerance D1 Tolerance d0 d1xd2xh D0
h7
CT
Nm
C0T
Nm
C
kN
C0
kN
MA.1
Nm
MA.2
Nm
Spline nut
g
Shaft
kg/m
LT 6 14 0
-0.011
25 0
-0.2
30 0
-0.2
5 7.5 0.5 0.5 1.5 22 3.4x6.5x3.3 6 4 0.98 1.96 1.18 2.16 4.9 36.3 35 0.23
LT 8 16 25 32 5 7.5 0.5 0.5 1.5 24 3.4x6.5x3.3 8 4 1.96 2.94 1.47 2.55 5.9 44.1 37 0.4
LT 10 21 0
-0.013
33 42 6 10.5 0.5 0.5 1.5 32 4.5x8x4.4 10 4 3.92 7.84 2.84 4.9 15.7 98 90 0.62
LT13 24 36 44 7 11 0.5 0.5 1.5 33 4.5x8x4.4 13 4 5.88 10.8 3.53 5.78 19.6 138 110 1.1
LT 16 31 50 51 7 18 0.5 0.5 2 40 4.5x8x4.4 16 6 31.4 34.3 7.06 12.6 67.6 393 230 1.6
LT 20 35 0
-0.016
63 58 9 22.5 0.5 0.5 2 45 5.5x9.5x5.4 20 6 56.9 55.9 10.2 17.8 118 700 330 2.5
LT 25 42 71 0
-0.3
65 9 26.5 0.5 0.5 3 52 5.5x9.5x5.4 25 6 105 103 15.2 25.8 210 1140 455 3.9
LT 30 47 80 75 10 30 0.5 0.5 3 60 6.6x11x6.5 30 6 171 148 20.5 34 290 1710 565 5.6
LT 40 64 0
-0.019
100 100 14 36 1 0.5 4 82 9x14x8.6 40 6 419 377 37.8 60.5 687 3760 1460 9.9
LT 50 80 125 124 16 46.5 1 1 4 102 11x17.5x11 50 6 842 769 60.9 94.5 1340 7350 2760 15.5

How to select a ball spline?
1. Setting conditions
Stroke length, velocity, magnitude of the applied load, mounting space, operating frequency, required service life, dimension(No. of spline nuts, span), installation direction, environment, accuracy.
2. Selecting a type
High torque type-LBS/LBST/LBF/LBR/LBH
Medium torque type-LT/LF/LT-X
Rotary type-LBG/LBGT/LTR/LTR-A
3. Studying the spline shaft strength
Estimating the spline shaft diameter/length, permissible load on the spling shaft, displacement of the spline shaft(deflection, torsion), method for fixing the spline shaft.
4. Predicting the service life, compared with the required service life.
5. Selecting a preload
6. Determining the accuracy
7. Selection according to the environment
