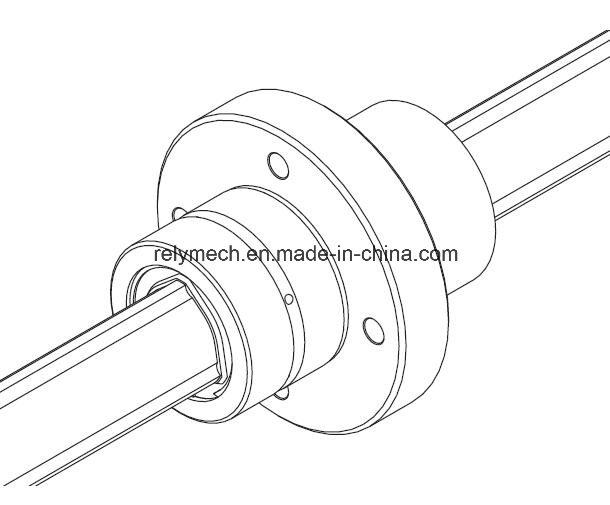

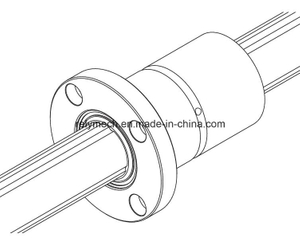

Lbr Ball Spline/Linear Motion Spline/Linear Ball Spline for Robot

  • Model NO.: LBR15/20/25/30/40/50/60/70/85/100
  • Specification: N/A
  • HS Code: 8483401000
  • Trademark: N/A
  • Origin: Cn
Quantity:
The Ball Spline is a rolling guide spline bearing. It is an innovative product with a ball rolling on a groove connected to the shaft, realizing allowable loads greater than with linear bushing and enabling torque transmission while making linear movements.

High torque type- LBS/LBST/LBF/LBR/LBH
This Ball Spline has no angular backlash to increase the rigidity by providing a preload with one spline nut since the spline shaft has 3 crests equidistantly arranged at 120 degrees on the circumference, each held by 2 rows (6 rows in total) of balls under a load .
Application:
Column and arm of industrial robot
Automatic loader
Transfer machine
Automatic conveyance system
Tire molding machine
Spindle of spot-welding machine
Guide shaft of high-speed automatic coating machine
Riveting machine
Wire winder
Work head of electric discharge machine
Spindle drive shaft of grinding machine
Speed gears
Precision indexing machine

Ball spline-LBR15/LBR20/LBR30/LBR40/LBR50/LBR60/LBR70/LBR85/LBR100


Lbr Ball Spline/Linear Motion Spline/Linear Ball Spline for Robot
Model No. Spline nut dimension
Basic torque rating Basic load rating
(Radial)
Static permissible moment Mass
Out dia. Out dia.
D3
Length Flange dia.
D1
H E PCD Mounting Hole
d1
F Lubrication Holes
d0
D Tolerance L Tolerance CT
Nm
C0T
Nm
C
kN
C0
kN
MA.1
Nm
MA.2
Nm
Spline
kg
Shaft
kg/m
LBR 15 25 0
-0.013
25.4 40 0
-0.2
45.4 9 15.5 34 4.5 7.5 2 30.4 74.5 4.4 8.4 25.4 185 0.14 1
LBR 20 30 0
-0.016
30.35 60 56.4 12 24 44 5.5 12 2 90.2 213 9.4 20.1 103 632 0.33 1.8
LBR 25 40 40.35 70 0
-0.3
70.4 14 28 54 5.5 14 2 176 381 14.9 28.7 171 1060 0.54 2.7
LBR 30 45 45.4 80 75.4 16 32 61 6.6 16 3 312 657 22.5 41.4 295 1740 0.9 3.8
LBR 40 60 0
-0.019
60.4 100 96.4 18 41 78 9 20.5 3 696 1420 37.1 66.9 586 3540 1.7 6.8
LBR 50 75 75.4 112 112.4 20 46 94 11 23 4 1290 2500 55.1 94.1 941 5610 2.7 10.6
LBR 60 90 90.5 127 134.5 22 52.5 112 11 26 4 1870 3830 66.2 121 1300 8280 3.7 15.6
LBR 70 95 0
-0.022
95.6 135 140.6 24 55.5 117 14 27 4 3000 6090 90.8 164 2080 11800 6 21.3
LBR 85 120 120.6 155 0
-0.4
170.6 26 64.5 146 16 32 5 4740 9550 119 213 3180 17300 8.3 32
LBR 100 140 0
-0.025
140.6 175 198.6 34 70.5 170 18 35 5 6460 14400 137 271 4410 25400 14.2 45


How to select a ball spline?
1. Setting conditions
Stroke length, velocity, magnitude of the applied load, mounting space, operating frequency, required service life, dimension(No. of spline nuts, span), installation direction, environment, accuracy.
2. Selecting a type
High torque type-LBS/LBST/LBF/LBR/LBH
Medium torque type-LT/LF/LT-X
Rotary type-LBG/LBGT/LTR/LTR-A
3. Studying the spline shaft strength
Estimating the spline shaft diameter/length, permissible load on the spling shaft, displacement of the spline shaft(deflection, torsion), method for fixing the spline shaft.
4. Predicting the service life, compared with the required service life.
5. Selecting a preload
6. Determining the accuracy
7. Selection according to the environment
