LTR-a Rotary Ball Spline/Linear Motion Spline/Linear Ball Spline with Support Bearing

  • Model NO.: LTR8A/10A/16A/20A/25A/32A/40A
  • Specification: N/A
  • HS Code: 8483401000
  • Trademark: N/A
  • Origin: Cn
Quantity:
The Ball Spline is a rolling guide spline bearing. It is an innovative product with a ball rolling on a groove connected to the shaft, realizing allowable loads greater than with linear bushing and enabling torque transmission while making linear movements.


Rotary type-LTR LTR-A

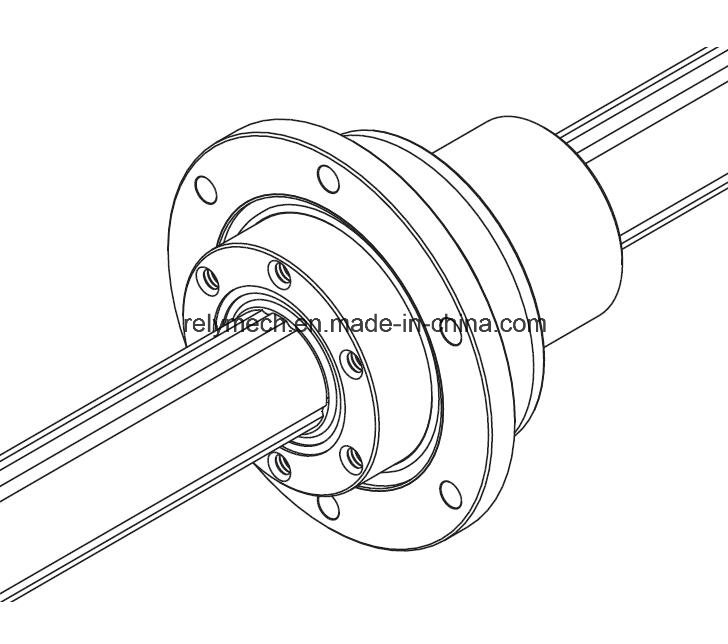

This model is a compact unit type of Ball Spline whose support bearings are directly integrated with the outer surface of the spline nut.

Application:
Z axis of scalar robot
Wire winder

Rotary type-LTR8A/LTR10A/LTR16A/LTR20A/LTR25A/LTR32A/LTR40A

LTR-a Rotary Ball Spline/Linear Motion Spline/Linear Ball Spline with Support Bearing
LTR-a Rotary Ball Spline/Linear Motion Spline/Linear Ball Spline with Support Bearing
Model No. Spline nut dimension Shaft
D0
h7
Ball
column
Basic torque rating Basic load rating Static permissible moment Support bearing basic load rating Mass
Out dia. Length Flange D8
h7
D7 H L1 Standard Type E K Type Oil Hole
F
E1 PCD PCD1 SXl d1
D Tolerance L D1 CT
Nm
C0T
Nm
C
kN
C0
kN
MA
Nm
C
kN
C0
kN
Spline nut
kg
Shaft
kg/m
LTR 8A 32 -0.009
-0.025
25 44 24 16 3 10.5 6 8.5 4 3 38 19 M2.6X3 3.4 8 4 1.96 2.94 1.47 2.55 5.9 0.69 0.24 0.08 0.4
LTR 10A 36 33 48 28 21 3 10.5 9 11.5 4 - 42 23 M3X4 3.4 10 4 3.92 7.84 2.84 4.9 15.7 0.77 0.3 0.13 0.62
LTR 16A 48 50 64 36 31 6 21 10 10 10.5 - 56 30 M4X6 4.5 16 6 31.3 34.3 7.05 12.6 67.6 6.7 6.4 0.35 1.6
LTR 20A  56 -0.010
-0.029
63 72 43.5 35 6 21 12 12 10.5 - 64 36 M5X8 4.5 20 6 56.8 55.8 10.2 17.8 118 7.4 7.8 0.51 2.5
LTR 25A 66 71 86 52 42 7 25 13 13 12.5 - 75 44 M5X8 5.5 25 6 105 103 15.2 25.8 210 9.7 10.6 0.79 3.9
LTR 32A 78 80 103 63 52 8 25 17 17 12.5 - 89 54 M6X10 6.6 32 6 180 157 20.5 34 290 10.5 12.5 1.25 5.6
LTR 40A 100 -0.012
-0.034
100 130 79.5 64 10 33 20 20 16.5 - 113 68 M6X10 9 40 6 418 377 37.8 60.4 687 16.5 20.7 2.51 9.9


How to select a ball spline?
1. Setting conditions
Stroke length, velocity, magnitude of the applied load, mounting space, operating frequency, required service life, dimension(No. of spline nuts, span), installation direction, environment, accuracy.
2. Selecting a type
High torque type-LBS/LBST/LBF/LBR/LBH
Medium torque type-LT/LF/LT-X
Rotary type-LBG/LBGT/LTR/LTR-A
3. Studying the spline shaft strength
Estimating the spline shaft diameter/length, permissible load on the spling shaft, displacement of the spline shaft(deflection, torsion), method for fixing the spline shaft.
4. Predicting the service life, compared with the required service life.
5. Selecting a preload
6. Determining the accuracy
7. Selection according to the environment
